Overview

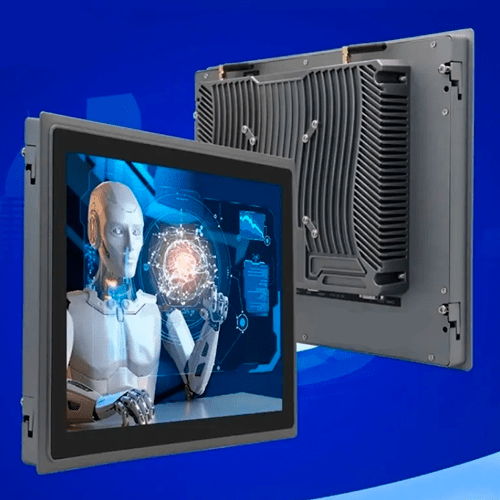

Enviro Test Construct touch pro panels are rated panels that feature high-hardness tempered glass for dust and waterproof protection. It has passed rigorous CE/EMC electrostatic tests, demonstrating exceptional anti-interference capabilities to thrive in harsh industrial environments. With a finless design and aluminum alloy die-cast back cover, it excels in heat dissipation, ensuring long-term stability and durability.
Features
- COM 1
- DC power supply
- HDMI
- VGA Display
- USB Port
- Audio port
- Waterproof Design
- Anti-Interference
- Durable Construction
- Tempered Glass
- Reliable Performance
Technical Specification
| CPU | Intel Celeron J 1800 |
| Memory | 1 x DDR 3 L SODIMM Slot, 1600 MHz / 1333 MHz, supports up to 8 GB storage |
| Audio Frequency | Integrated ALC 662 6-channel high fidelity audio controller, supports MIC (Red), Lineout (Green) |
| Network | Integrated Gigabit LAN |
| Wireless | WIFI module can be installed |
| Reaction Time | 1181.10 in (30000 mm / s) |
| Operating System | Supports Win7 / Win8 / Win10 / Linux |
| Screen Size | 15 in (381 mm) |
| USB Interface | USB x 4 (supports extension) |
| Display Ports | HDMI 1, VGA 1 |
| Power Interface | DC 12 V x 1 |
| Extension Ports | Optional wide voltage module (9 V to 36 V) |
| Power Supply | 12 V to 5 An external power adapter |
| Material | Aluminum alloy metal material |
| Color | Black |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Storage Temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Degree of Protection | Front panel IP 65 dustproof and waterproof |
