Overview

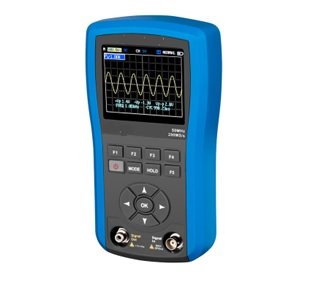

This Enviro Test Construct Oscilloscope with Signal Generator (Calendar Display) is a professionally engineered oscilloscope, built with a digital/analog clock and calendar display for easy viewing. It helps window to prompt key functions and measurement of items. The DSO realizes one-click (AUTO) automatic measurement and automatically displays measured waveforms with zero corrections.
Key Features
- 50 M digital storage oscilloscope (DSO)
- 10 Hz~156 kHz function signal generator (DDS)
- Digital/analog clock and calendar display
- Helping window to prompt key functions and measurement items
- DSO realizes one-click (AUTO) automatic measurement
- Automatic display of measured waveforms and automatic zero correction
Technical Specifications
| Display | 320 ´ 240 LCD | View area | 3.07 in x 2.28 in (78 mm x 58 mm) |
| Backlight | White | Auto shutdown | 10 minutes |
| Low power symbol | Charge time | More than 4 hours | |
| Continuous service time | About 120 minutes | Storage capacity | 40 groups of waveform records |
| Application environment | +32 F to +122 F (0 °C ~+ 40 °C); <75 % RH | Storage conditions | -14 F to 140 F (-10 °C ~ +60 °C); < 90 % RH |
| Dimensions | 7.32 in × 3.38 in × 1.25 in (186 mm × 86 mm × 32 mm) | Weight | About 1.08 lbs (490g excluding other accessories) |
| Battery | Built-in 2300 mAh lithium battery pack | Power supply adaptor | 110 V~250 V, 5 V/1.5 A, protection switching power supply |
| Analog bandwidth | DC~50 MHz probe X10; DC~5 MHz probe X1 (3 db bandwidth, sine wave response) | ||
| Maximum real-time sampling rate | 200 Msps | Vertical resolution | 8 bits |
| Coupling mode | DC/AC | Graduation | Vertical ±4 div; horizontal 12 div |
| Vertical sensitivity range | 10 mV/div ~ 50 V/div 1-2-5 10 mV/div~50 V/div 1-2-5 binary switch | Time base range | 5 ns/div~2.5 s/div 1-2.5-5 binary switch |
| Vertical amplitude accuracy | ±(5 %+ 0.1 div) | Time base accuracy | ±(0.01 % + 0.1 div) |
| Automatic zero correction | Yes | Measurement mode | Regular, single |
| Trigger level | ±3.8 div (0.04 div per step) | Single trigger slope selection | Rising/falling edge |
| Trigger position adjustment | ±3.8 div (0.04 div per step) | Automatic setting | Automatically set time base and vertical amplitude |
| Cursor measurements | dV, dt, | Automatic measurements | Vp-p, +Vp, -Vp, f, T |
| Automatic measurement accuracy | ±(5 %+ 0.1 div) | Waveform interpolation | (sinx)/x |
Additional Information
Enviro Test Construct Oscilloscope with Signal Generator (Calendar Display)
Accessories
| Scope meter | 1 pc |
| Oscilloscope probe | 1 pc |
| Signal output wire | 1 pc |
| Power supply adaptor | 1 pc |
| Carrying Case | 1 pc |
| Product manual (containing product warranty regulations and user receipt) | 1 set |
