Overview

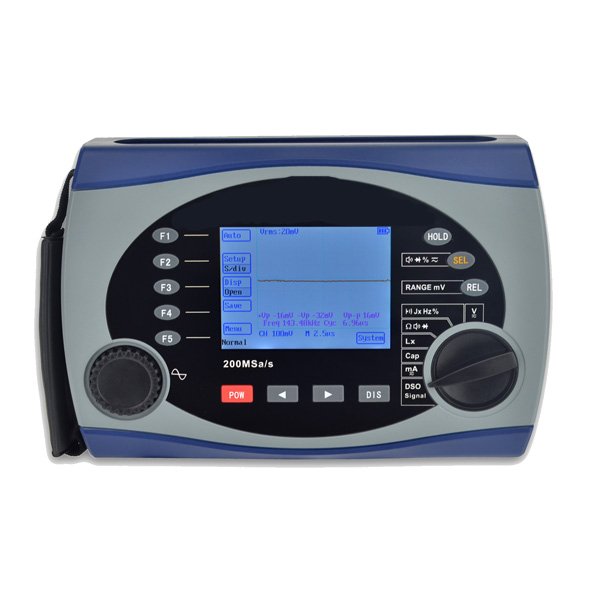

Enviro Test Construct Oscilloscope with auto zero calibration and can record 40 waveforms and display max/min/current values simultaneously.
Key Features
- Bandwidth of AC voltage is up to 20kHz
- Max range is up to 2000V
- MAX/MIN/current value simultaneously on one screen
- DMM 400groups data and DSO 40 waveform record
Technical Specifications
| Display | 320 ´ 240 LCD | Display area | 3.07x 2.28 in(78 mm x 58mm) | ||||
| Backlight | White or yellow | Input impedance | DMM 10MΩ， | ||||
| Battery | Built-in1600mAh Ni-Hi battery | Auto power-off | No action within 10mins | ||||
| Low Battery indicator | Charging time | More than 8hours | |||||
| Working time | Approx. 6 hours | Memory | DMM 400groups data and DSO 40 waveform record | ||||
| Work condition | 0~+104 F(0°C~+40°C);<75%RH | Storage condition | 14~ 140 F(-10°C ~ +60°C); <90%RH | ||||
| Dimension | 7.87x 5.31x 2.047 in(200mm ´ 135 mm ´52mm) | weight | Approx 2.204 lbs(1000g) (Net weight) | ||||
| Operate height | 0~ 6561.68 foot(0~2000m) | Adaptor power | 110V~250V，12V/1A, protection- switch power | ||||
| Analog bandwidth | DC ~ 50MHz, probe: X10; DC~6MHz, probe X1 (3db bandwidth，sine wave response) | ||||||
| Max sampling rate | 200Msps | Vertical resolution | 8 bits | ||||
| Channel | 1 | couple | DC/AC | ||||
| Input impedance | 1MΩ//20pF | Div | vertical ±4 div horizontal 10 div | ||||
| Vertical sensitivity range | 20mV/div ~ 50V/div 1-2-5 exchanging step | Time base | 10ns/div ~ 1s/div 1-2.5-5 switch | ||||
| Vertical amplitude accuracy | ±(5%+ 0.1div) | Time base accuracy | ±(0.01% + 0.1div) | ||||
| Auto-Zero calibrating | Yes | Measuring mode | Normal, Video, Single | ||||
| Trigger level | ± 3.8 div (every step interval 0.04div) | Single slop of selection | Rising edge/ Falling edge | ||||
| Trigger condition | ± 3.8div (every step interval 0.04div) | Auto setting | Auto setting time base and amplitude | ||||
| Cursor measuring | dV, dt, | Auto measuring | Vp-p, +Vp,-Vp,f,,T | ||||
| Auto measuring accuracy | ±(5%+ 0.1div) | Waveform | (sinx)/x | ||||
