Overview

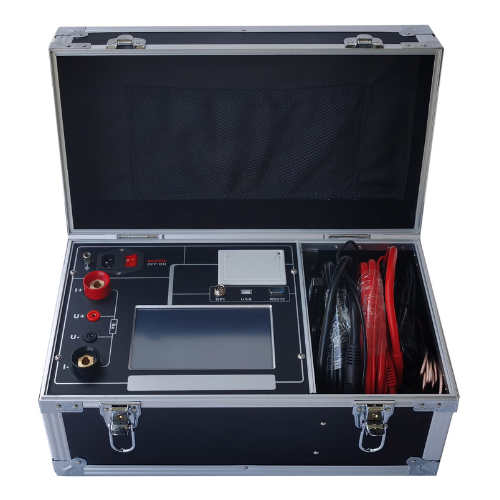

Enviro Test Construct’s portable LCD microohm circuit breaker loop resistance tester 100A is designed for accurate electrical testing in circuit breakers, switches, and busbars. It features a 7-inch LCD display, Bluetooth data upload, and high precision measurement with a resolution of 0.01 μΩ. The device operates with a test current range of 50A to 100A and offers reliable performance with a precision of ± 0.5% rdg ± 10 dgt. It is suitable for field use or laboratory environments, ensuring efficient and precise contact resistance testing.
Features
- High-precision measurement with 0.01 μΩ resolution

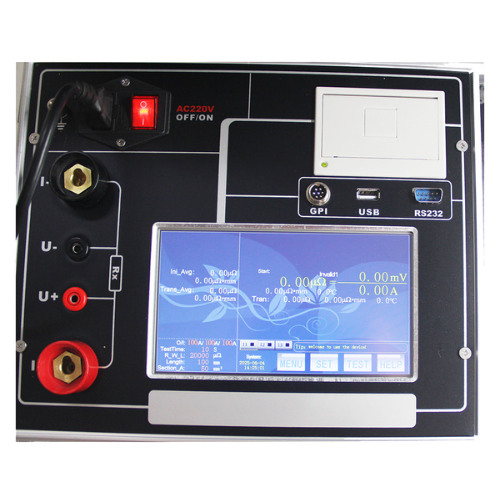

- Large 7-inch LCD for clear data display
- Bluetooth capability for wireless data upload
- Wide test current selection from 50A to 100A
- Durable IP55 protection for harsh environments
- Operates effectively in extreme temperatures
- Compact and portable design for easy transport
Technical Specifications
| Power Consumption | < 100 W |
| Voltage | AC 220 V ± 10%, 50 Hz ± 2% |
| Test Current Selection | 100 A |
| Test Current Range | 50 A to 100 A |
| Measurement Range | 0 μΩ to 19999 μΩ |
| Test Precision | ± 0.5% rdg ± 10 dgt |
| Resolution | 0.01 μΩ |
| Protection Class | IP55 |
| Display | 7-inch LCD |
| Data Upload | Bluetooth |
| Operating Temperature | -13 °F to 122 °F (-25 °C to 50 °C) |
| Dimensions (L x W x H) | 18.90 in x 11.81 in x 10.24 in (48 cm x 30 cm x 26 cm) |
| Product Weight | 28.44 lb (12.9 kg) |
