Overview

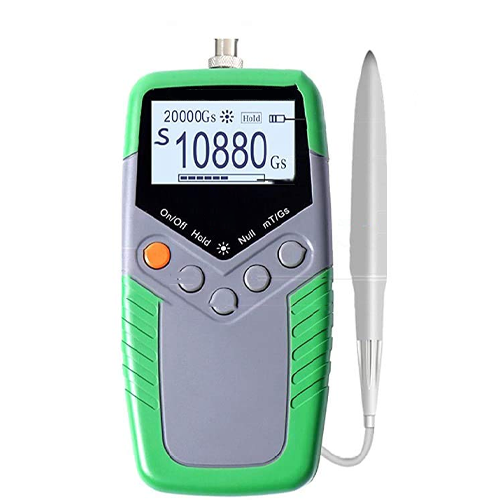

Enviro Test Construct Handheld Digital electromagnetic radiation detector is a field-portable unit that measures DC magnetic fields with direct digital readout in mT or G. The unit is designed for wide range, auto-range, high accuracy, and ease of use.
Features
- Permanent magnet surface magnetic measurement
- Remanent magnetization measurement of mechanical parts
- DC magnetic field source measurement
- Magnetic field measurement of magnetic separator
- Speaker quality control
- Working magnetic field measurement of permanent magnet iron remover
- Working magnetic field measurement of DC generator
- Leakage magnetic field of strong magnetic shielding
Technical Specifications
| Range | 200 m T to 2000 m T |
| Scope | Maximum calibration field 2400 m T, 24 kilogausses |
| Resolution | 10 μ T |
| Accuracy | ±2% |
| Display | 4 digits (in Decimal) |

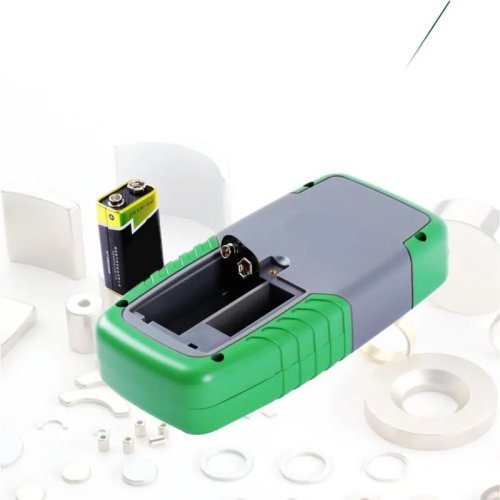

| Power | Stud – snap Battery Operated; one section of 9 V battery |
| Operating environment | 32 °F to 122 °F (0 ℃ to 50 ℃) |
| Storage temperature | -4 °F to 122 °F (- 20 ℃ to 50 ℃) |
| Dimensions | 6.29 in x 3.14 in x 1.25 in (160 mm x 80 mm x 32 mm) |
| Weight | 0.57 lb (260 g include battery and cable) |
