Overview

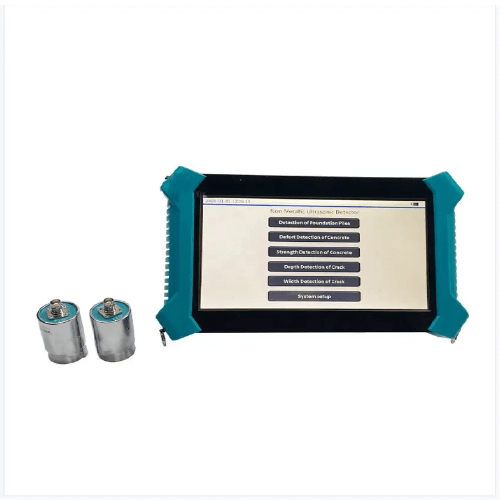

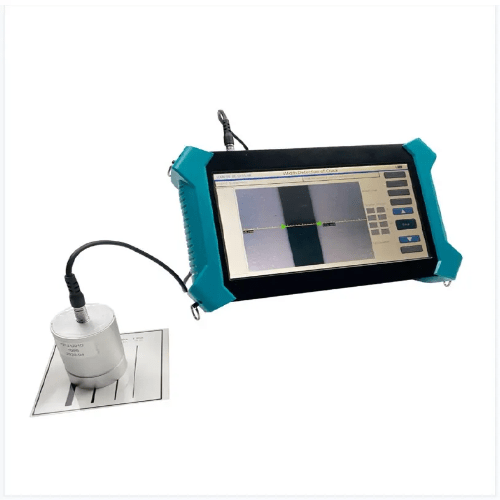

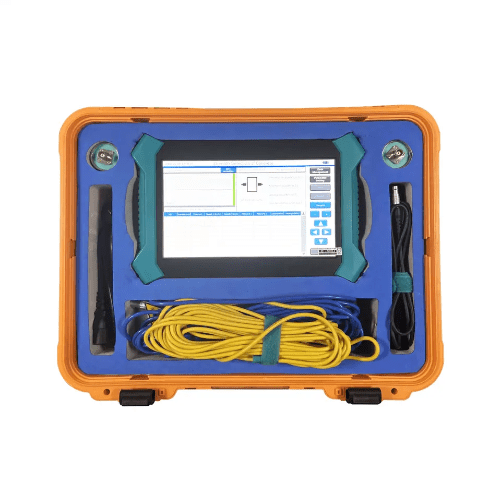

Enviro Test Construct ultrasonic testing concrete is an instrument gives data concerning the homogeneity of the concrete, by generating pulses of sound into the concrete and measuring the time the sound to travel from the transmitter probe to the receiver probe through the material. Furthermore it is possible to have indicative data of the strength of the concrete.
Technical Specifications
| Master control unit | Built-in A8 industrial control motherboard |
| Display | 10.1 in ( 12.34 mm), high brightness, TFT color LCD capacitive screen |
| Operational mode | Touch screen |
| Storage mode | Built-in Electronic Hard Disk(>8GB)+Large Capacity U Disk |
| Data transmission mode | Wireless Cloud Transport(Options) |
| Channel number | 1 transmit+1 receive |
| Trigger mode | Signal triggering |
| Sampling period | 0.05 ms to 409.6 ms |
| Acoustic time accuracy | 0.05 s |
| Acoustic time range | 1677700 s |
| Measuring range: | ( 0 in to 0.34 in) 0 mm to 10 mm |
| Dynamic range(dB) | 0.5 dB |
| Emission voltage(V) | 250 V, 500 V and 1000 V gears adjustable |
| Communication interface | UBS, Bluetooth, Wifi |
| Working hours(h) | More than 8 |
| Power supply mode | 220 V |
| Temperature | 4 °F to 96 °F (10 ℃ to 40 ℃) |
| Host size(mm) | 11.81 in x 7.87 in x 2.16 in (300 mm x 200 mm x 55 mm) |
