Overview

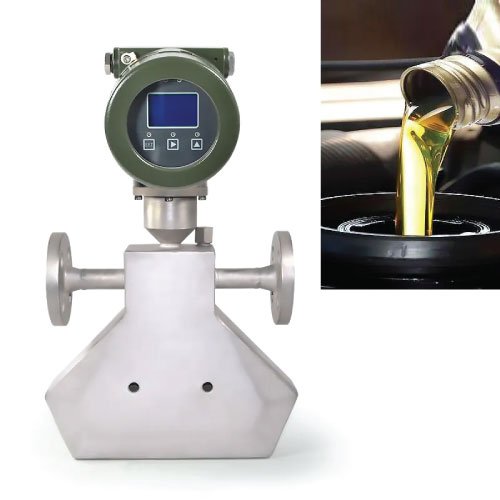

Enviro Test Construct Coriolis Mass Flow Meter is an advanced and high accuracy mass flow meter because of it’s superior performance, High Measuring accuracy and lower request for medium, lower pressure loss and directly display mass flow, volume flow and temperature high quality material, various output, and easy installation. It features high accuracy and suitable for various industrial application, including chemical, oil and gad, and food processing industries.
Feature
- High Accuracy with standard type is 0.2%
- High Quality Material in all stainless steel 316L
- Display more details of medium
- Various Output with RS485/MODBUS/HART/4-20mA
- Widely Measuring Range min diameter is DN1, and the max is DN150
Technical Specifications:
| Flow Accuracy | +/-[0.2% or 0.1%+(zero stability/flow rate 100%] |
| Diameter | DN1 – DN150 mm |
| Flow Repeatability | +/- (1/2) [zero stability/flow rate 100%] |
| Density Range | 0.0044 lb/cm3 – 0.0771 lb/cm3 (0.2 g/cm3-3.5 g/cm3) |
| Dencity Accuracy | +/- 0.0044 lb/cm3 (0.002 g/cm3) |
| Temperature Range | -51.11(-60 to 200) |
| Temperature Accuracy | +/- -17.22 |
| Output of current loop | mA |
| Output of Frequency/pulse | 0 Hz to 10 KHz |
| Relay | 24 V/0.1 A |
| Explosion proof | Essential safety: Exib[ib]IIBT4; Composite: Exdib[ib]IIBT4 |
| Contactor form | Normal Open |
| Medium temperature range | -40 93.33(-40 |
| Environment Temperature Range | -17.77(0 |
| Environment Humidity | 90% RH, non condensation |
| Power supply of transmitter | Essential safely Voltage: AC ( 220 +/- 10%)V, (50+/-5%)Hz, Composite Voltage: DC (24 +/- 10%)V |
