Overview

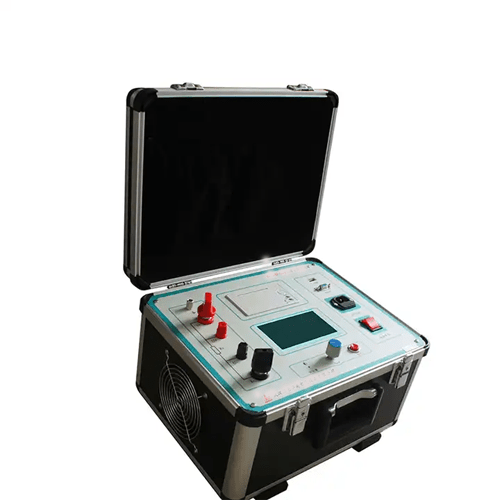

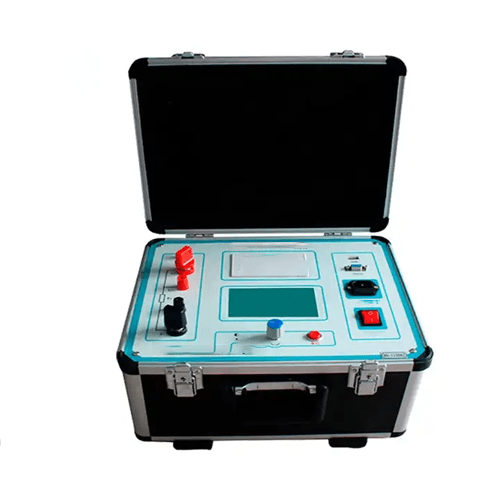

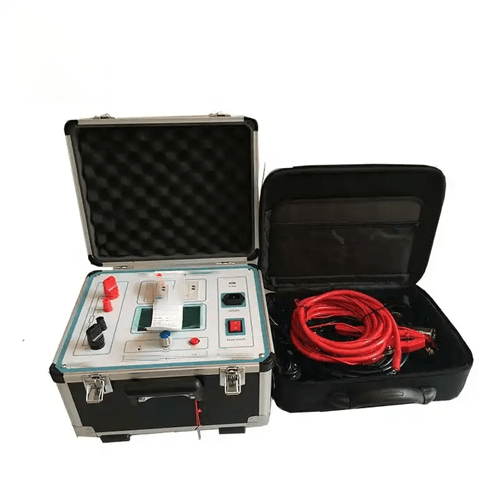

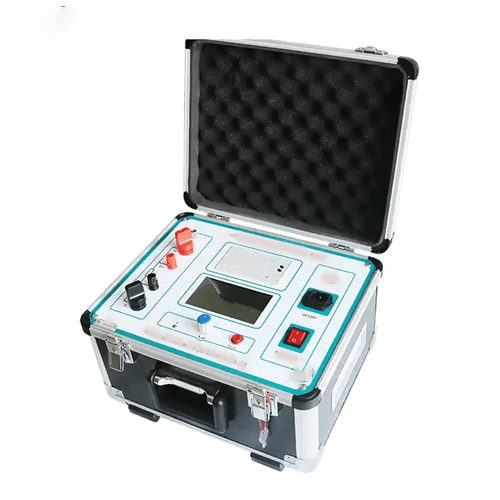

Enviro Test Construct dynamic contact resistance tester is suitable for precision measurement for high or low voltage switches contact resistance and cable or line DC resistance. It also applies to other test occasions that need high current and micro resistivity.
Features
- High current, oxide breakthrough
- Stable LCD, ±1 range
- High precision, 0.01 μΩ
- Intelligent, auto-range
- Quality, temp compensation
- Powerful, up to 200 A
- User-friendly interface, data input
- USB data storage
- Compact, lightweight
Technical Specification
| Customized Support | OEM, ODM, OBM |
| Power Supply | AC 220 V ± 10% 50 Hz |
| Power Of the Whole Machine | 600 W |
| Measured Current | DC 50 A, 100 A, 150 A, 200 A fixed output |
| Continuous Working Time | 5 s to 599 s |
| Communication Mode | USB |
| Dimension | 14.17 in x 11.81 in x 9.84 in (360 mm x 300 mm x 250 mm) |
| Weight | 17.645 lb (8 kg) |
