Technical Specification
| Principle | Principle of ultrasonic time difference |
| Accuracy | ±1% |
| Display | 4 x 16 Western dot matrix LCD |
| Signal Output | 1 channel OCT pulse output (pulse width 6 ms to 1000 ms, default 200 ms) |
| Data Interface | The RS232 serial interface is isolated, and the flowmeter can be upgraded by PC computer |
| Pipe | Steel, stainless steel, cast iron, steel, PVC, Aluminium, glass fiber reinforced plastic and other dense pipes are allowed to be lined |
| Tube Inner Diameter | 0.6 in to 236.22 in (15 mm to 6000 mm) |

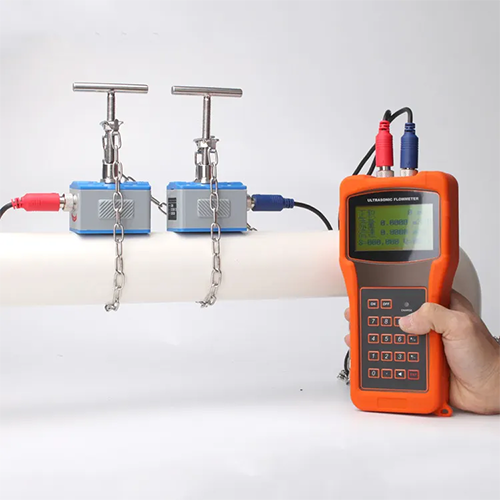

| Straight Pipe Section | The sensor installation point is best to meet upstream 10 D, downstream 5 D, and 30 D from the outlet (D is the pipe diameter) |
| Type | Water or sea water or industrial sewage or acid-base liquid} |
| Turbidity | 10000 ppm and small bubble content |
| Current Speed | 0 ±10 M/S |
| Temperature | Main engine: 68 °F to 140 °F (20 °C to 60 °C) flow sensor: 86 °F to 320 °F (30 °C to 160 °C) |
| Humidity | Host: 85% RH; sensor grade: IP67 |
| Power Supply | Three built-in 1.2 V rechargeable Ni-MH batteries with a capacity of 2000 mAh, which can work continuously for more than 12 hrs each time. AC 90 V to 260 V power adapter can be used to achieve continuous measurement. |
| Power Waste | 1 W |
| Shell Material | Flame Retardant ABS |
| Weight | 1.07 lb (390 g) |
