Features

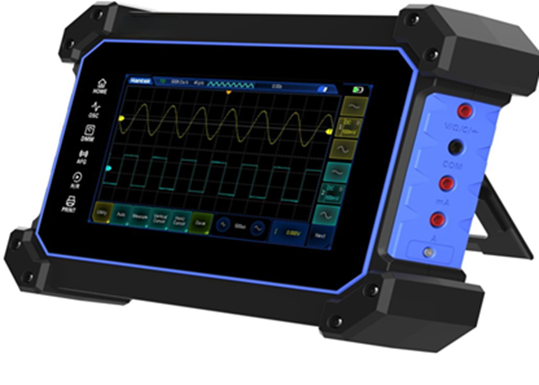

- Portable real-time touchscreen oscilloscope.
- 150MHz bandwidth with 2 channels.
- 1GSa/s sample rate, 8M memory depth.
- 2mV to 10V vertical resolution.
- With rechargeable 10000mAh lithium battery.
- USB Type C interface for charging and remote control.
- USB 2.0 device interface supports removable storage device.
- 7-inch TFT color LCD display, 800×480 resolution, touch screen.
- Up to 25MHz output 1 channel arbitrary waveform generator.
- With digital multimeter with record function to monitor voltage, current, resistor data changing.
Technical Specifications
| Parameters | Details | |
| Overview | ||
| Oscilloscope | 2 analog channels | |
| Waveform Generator | 1 channel 25MHz arbitrary function generator | |
| DMM | Standard | |
| OSCILLOSCOPE | ||
| Acquisition | ||
| Max. Sampling Rate | 1 GSa/s | |
| Max. Recording Length | 8Mpts | |
| Acquisition Mode | Normal, Peak Detect, Average, HR (High Resolution) | |
| Interpolation | (Sin x)/x | |
| Vertical | ||
| Analog Channels | 2 | |
| Bandwidth | 150MHz | |
| Input Coupling | AC, DC, GND | |
| Vertical Resolution | 8-bit | |
| Input Sensitivity Range | 2mV/div to 10V/div | |
| Offset Range | 2 mV/div to 100 mV/div : ±1 V 200 mV/div to1 V/div : ±10 V 2 V/div to 10 V/div : ±50 V | |
| Bandwidth Limits | 20MHz (selectable) | |
| Input Impedance | 1MΩ±2%, 18pF±3pF at BNC | |
| Max. Input Voltage | 300 Vrms CAT II (with 10x probe) | |
|
DC Gain Accuracy | ±3% full scale derated at 0.10%/°C above 30 °C (Guaranteed, specification valid after 30 minute warm-up and Signal Path Compensation at ambient.) | |
| Dynamic Range | ± 5 div | |
| Probe Attenuation Factors | 0.01x, 0.02x, 0.05x, 0.1x, 0.2x, 0.5x,1x, 2x, 5x, 10x, 20x, 50x, 100x, 200x, 500x, 1000x, 2000x, 5000x, 10000x | |
| Horizontal | ||
| Time Base Range | 2ns/div to 100s/div (in 1-2-5 sequence) | |
| Time Modes | YT, XY, Roll | |
| Delta Time Measurement Accuracy (Full Bandwidth) | Single-shot, Normal mode: ± (1 sample interval +100ppm × reading + 0.6ns) >16 averages: ± (1 sample interval + 100ppm × reading + 0.4ns) Sample interval = s/div ÷ 200 | |
| Trigger | ||
| Trigger Modes | Auto, Normal, Single | |
| Trigger Source | CH1, CH2, CH3, CH4 | |
| Trigger Holdoff Range | 8ns to 10s | |
| Autoset | Finds and displays all active channels and external trigger. And automatically configures the best display of the input signals on these channels | |
| Trigger Level Ranges | Any input channel±4 divisions from center of screen | |
|
Trigger Sensitivity | ±0.87div (2mV/div) ±0.78div (5mV/div) ±0.69div (10mV/div) ±0.52div (20mV/div) ±0.47div (50mV/div, 500mV/div) ±0.26div (100mV/div, 200mV/div, 1V/div, 2V/div, 5V/div, 10V/div) | |
| Trigger Types | Edge, Pulse Width, Video, Slop, Timeout | |
| Measurements | ||
| Cursors | Delta V (△V): Voltage difference between cursors Delta T (△T): Time difference between cursors Reciprocal of △T in Hertz (1/ΔT) | |
|
Auto Measurements | Peak-Peak, Max, Min, Vtop, Vmid, Vbase, Vamp, Average, R-Overshoot, F-Overshoot, R-Preshoot, F-Preshoot, Variance, PeriodAvg, RMS, PeriodRMS, Period, Frequency, Rise Time, FallTime, +Width, -Width, +Duty, -Duty, MaxTime, MinTime, BWidth, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, R-PhaseAB, F-PhaseAB, +Pulse CNT, -Pulse CNT, RE Count, FE Count, Trig Count | |
| Waveform Math | |
| Arithmetic | +, -, x , ÷, FFT |
| FFT points | 1024 |
| FFT Units | Magnitude: linear (Vrms) and log (dBm) |
| FFT Windows | Rectangular, Hamming, Hanning, Blackman, Bartlett, Flattop |
| Storage | |
| Save/Recall (non-volatile) | Images, data, setups and waveforms can be saved and recalled internally |
| Storage Mode | Image format: .bmp Data formats: .lwf, .csv, .pho, .ref |
| I/O | USB 2.0 host (Type C), USB 2.0 device (Type A) |
| Display System | |
| Display | 7″ TFT LCD resistive touch display |
| Resolution | 480 vertical by 800 horizontal |
| Waveform Styles | Vectors, dots, variable persistence, and infinite persistence |
| Grid | Selectable between full, dotted, and none |
Notes: Denotes warranted specifications, all others are typical. Specifications are valid after a 30 -minute warm-up period and within ± 5 °C of last calibration temperature.
| BUILT-IN ARBITRARY/FUNCTION GENERATOR | |
| WaveGen Out | 1CH Top-panel BNC connector |
| Operating Modes | Continuous, Modulate, Burst |
| Max. Frequency | 25MHz |
| Vertical Resolution | 12-bit |
| Sampling Rate | 200MSa/s |
| Amplitude Range | 0mV to 3Vpp in 50Ω, 0mV to 6Vpp in Hi-Z |
| Output Impedance | 50Ω + 2% |
| Frequency Resolution | 0.1Hz or 4 digits (select the bigger one) |
| Frequency Accuracy | 100 ppm (< 10kHz), 50 ppm (> 10kHz) |
| Waveforms | Sine, square, triangle, noise, DC, arbitrary. |
| Frequency | Sine: 0.1 Hz to 25 MHz Square: 0.1 Hz to 10 MHz |
| Triangle: 0.1 Hz to 1 MHz Arbitrary: 0.1 Hz to 10 MHz Note: Support downloading arbitrary waveform from computer and recall from external memory. | |||||
| Noise Bandwidth | >25 MHz | ||||
|
DC | Offset | ±1.5 V (50Ω), ±3.0 V (Hi-Z) | |||
| Resolution | 100 μV | ||||
| Accuracy | 2% (1kHz) | ||||
|
Modulation |
Modulation Type | AM | Modulation Frequency: 1 Hz to 50 kHz Depth: 0 to 120% | ||
| FM | Modulation Frequency: 1 Hz to 50 kHz Deviation: 0.1 Hz to 1 kHz | ||||
| Internal Modulation | Sine, square, triangle | ||||
|
Burst | Types | Multi cycles, Infinite | |||
| Count | 1 to 2,000,000,000 | ||||
| Trigger Source | Manual | ||||
| DIGITAL MULTIMETER | |||||
| Max. Resolution | 4000 points | ||||
| Measurement Mode | Voltage, Current, Resistance, Capacitance, Diode, Continuity | ||||
| Max. Input Voltage | 600 V | ||||
| Max. Input Current | 10 A | ||||
| Input Impedance | 10 MΩ | ||||
| Function | Range | Resolution | Accuracy | ||
|
DC Voltage | 400 mV | 100 μV |
± (1%+2) | ||
| 4.000 V | 1 mV | ||||
| 40.00 V | 10 mV | ||||
| 400.0 V | 100 mV | ||||
| 600.0 V | 1 V | ||||
| Overload protection: the range of 400mV is 250V, and the rest ranges are 600Vrms. | |||||
|
AC Voltage | 4.000 V | 1 mV | ± (1.2%+5) | ||
| 40.00 V | 10 mV | ||||
| 400.0 V | 100 mV | ||||
| 600.0 V | 1 V | ± (1.5%+5) | |||
| Frequency range: 40 Hz to 400 Hz | |||||
| 400 V and 600 V frequency range: 40 Hz to 100 Hz | |||||
|
DC Current | 40.00 mA | 10 μA | ± (1%+2) |
| 200.0 mA | 100 μA | ± (1.5%+2) | |
| 4.000 A | 1 mA | ± (1.8%+2) | |
| 10.00 A | 10 mA | ± (3%+2) | |
| Overload protection: resettable fuse 200mA/250V, no fuse for 4Aand 10A | |||
|
AC Current | 40.00 mA | 10 μA | ± (1.3%+2) |
| 400.0 mA | 100 μA | ± (1.8%+2) | |
| 4.000 A | 1 mA | ± (2%+3) | |
| 10.00 A | 10 mA | ± (3%+5) | |
| Frequency range: 40 Hz to 400 Hz | |||
| Resettable fuse: 200mA/250V, no fuse for 4A and 10A. | |||
|
Resistance | 400.0 Ω | 0.1 Ω | ± (1%+3) |
| 4.000 kΩ | 1 Ω |
± (1.2%+5) | |
| 60.00 kΩ | 10 Ω | ||
| 400.0 kΩ | 100 Ω | ||
| 4.000 MΩ | 1 kΩ | ||
| 40.00 MΩ | 10 kΩ | ± (1.5% ± 3) | |
| Overload protection: 220Vrms | |||
|
Capacitance | 40.00 nF | 10 pF |
± (3%+5) |
| 400.0 nF | 100 pF | ||
| 4.000 μF | 1 nF | ||
| 40.00 μF | 10 nF | ||
| 100.0 μF | 100 nF | ||
| Overload protection: 220Vrms | |||
| Diode | 0 V to 1.0 V | ||
| Continuity | < 50 Ω | ||
Notes: Accuracy is given as ± (% of reading + counts of least significant digit) at 23 ± 5 °C, with relative humidity < 80 RH
| General | |
| Power Adapter | Line voltage range: 100 – 240VAC, 50 – 60Hz Output voltage: 5VDC, 3A or 9VDC, 2A or 12VDC, 1.5A |
| Battery | Li-Ion rechargeable battery pack, 3.7V 10.4Ah |
| Power Consumption | < 8W |
| Operating Temperature | 32 °F to 122 °F (0 to 50 °C) |
| Storage Temperature | -4 °F to 140 °F (-20 to 60 °C) |
| Humidity | ≤ 104 °F (≤+40°C): ≤90% relative humidity, 105.8 °F to 122 °F (+41°C to 50°C): ≤60% relative humidity |
| Altitude | Operating: Below 3,000m (10,000 feet) |
| Cooling Method | Convection |
| Dimension (W x H x D) | 9.76 × 6.93 × 2.13 inches (248 x 176 x 54 mm) |
| Weight | < 2.6455 lb (< 1.2kg) |
