Features
Superior Performance
- Based on the OWON X-Vision II advanced architecture: lower noise, higher storage, faster refresh.
- 100M storage depth, up to 700,000wfms/s waveform refresh rate, ensuring clear signal capture.
- Vertical accuracy is 200uV/div-10 V/div.
- 1M- point FFT analysis ensures accurate frequency component display.
Android Based, Extensive Expandability
- Support for external devices like mouse and keyboard, greatly enhancing efficiency.
- Enhanced file management for easier viewing, editing, and exporting.
- Optional wireless module (Wi-Fi/Bluetooth) supports FTP, network printers, mobile hotspots, and more.
Comprehensive Features
- Integrates oscilloscope, 30MHz AFG (optional), frequency counter, voltmeter, FFT spectrum analyzer and protocol analyzer.
- Bode plot functions (AFG models).
Human-machine Interaction and Design
- Ultra-thin design saving valuable workspace.

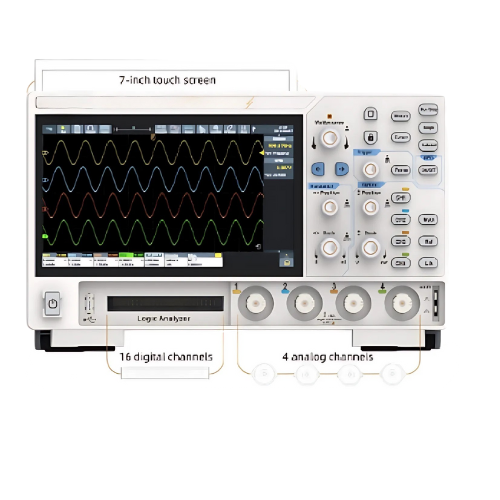

- 7-inch touchscreen with multi-touch support for an enhanced interactive experience.
- Multi-touch gestures, and customizable shortcuts for easier use.
12-bit high-precision hardware oscilloscope
The oscilloscope provides 16 times the accuracy of regular oscilloscopes and includes a zoom feature to magnify signal details in real-time for anomaly analysis.
Low noise, high sensitivity, and accurate small signal measurements.
Standard vertical resolution from 200μV/div to 10V/div
Deep storage balances overall view and details.
The new standard 100Mpts storage depth allows you to capture longer signal durations and zoom in on details, balancing overall view and details.
Capture anomalies and grasp every detail.
In high-speed mode, the oscilloscope’s waveform refresh rate reaches up to 700,000 wfms/s, ensuring clear capture of signal changes.
256 levels of grayscale display, color afterglow leaves long traces.
Assists in observing signal trends over time, especially when monitoring fast changes or transient phenomena.
Technical Specifications
| ETCDOS-212 (A) | ETCDOS-212 (B) | ETCDOS-212 (C) | ETCDOS-212 (D) | |
| Bandwidth(-3 dB) | 125MHz | 250MHz | 125MHz | 250MHz |
| Channel | 2 | 4 | ||
| Max. sample rate | 2GSa/s (single-channel) 1GSa/s (dual-channel) 500MSa/s (full-channel) | |||
| Acquire mode | Sample, Peak, High Res, Average, Segmentation | DC Gain Accuracy | 3%(≤1 mV) 2%(≥2 mV) | |
| Max. waveform capture rate | Max. 700,000 wfms/s | Max memory depth | 100M | |
| Vertical Sensitivity Range | 200μV/div to 10 V/div | Vertical resolution | 12 bits | |
| Sampling rate range | 1ns/div to 1000s/div, step by 1-2-5 | Relay time accuracy | ±25 ppm (typical) | |
| Input Impedance | 1MΩ±2%, parallel with 20 pF±5 pF | |||
| Probe Attenuation Coefficient | 1.00X to 1M.00X, step by 1-2-5, support custom | |||
| Trigger type | Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth, Logic, RS232/UART, I2C, SPI, CAN, LIN | |||
| Bus decoding | RS232/UART, I2C, SPI, CAN, LIN | |||
| Auto measurement | Period, Frequency, +Width, -Width, Rise Time, Fall Time, Scr Duty, +Duty, -Duty, Vavg, Vpp, VRMS, Overshoot, Vmax, Vmin, Vtop, CycRms, Vbase, Vamp, Preshoot, Std Dev, +Pulse Cnt, -Pulse Cnt, Rise Cnt, Fall Cnt, Area, Cyc Area, Delay(A1-B1), Delay(A1-B1), Delay(A1-B1), Delay(A1-B1), Phase(A1-B1), Phase(A1-B1), Phase(A1-B1), Phase(A1-B1), FRR(A1-B1), FRF(A1-B1), FFR(A1-B1), FFF(A1-B1), LRR(A1-B1), LRF(A1-B1), LFR(A1-B1), LFF(A1-B1) | |||
| Waveform Math | +, -, *, /, &&, , ^, !, Intg, Diff, Sqrt, Function operation (Lg / Ln / Exp / Abs / Sine / Cosine / Tan), FFT, FFT RMS, User Defined, digital filter (low pass, high pass, band pass, band reject) | |||
| Frequency counter | 6-digit frequency counter, Maximum frequency: maximum analog bandwidth of oscilloscope | |||
| Voltmeter | Support DC, AC+DCrms, ACrms, Resolution: 4 digits (ACV/DCV) | |||
| Arbitrary Waveform Generator (Optional) Specification | ||||
| Max frequency output | 30MHz (single)
| Sample rate | 160MSa/s | |
| Standard waveform | Sine, Square, Ramp, Pulse, Noise | |||
| Arbitrary waveform | 28 built-in waveforms | |||
| Vertical resolution | 14 bits | Arb waveform | 1μHz to 10MHz | |
| Arb waveform length | 2-8K points | Amplitude | 2mVpp to 10Vpp, 1mVpp to 5Vpp (50 Ω) | |
| Impedance | 50Ω (type) | Modulation | AM, FM, PM, FSK | |
| Logical Analyzer (Optional) Specification | ||||
| Number of channels | 16 input channels (D0-D15) (D0 to D7, D8 to D15) | |||
| Threshold Range | ±20.0 V, 10 mV step | Max. input voltage | ±40V peak CAT I, transient overvoltage 800Vpk | |
| Minimum voltage swing | 500mVpp | Input Impedance | 100kΩ, 8 pF | |
| Max. Input dynamic range | ±30 V+ threshold | Vertical resolution | 1 bit
| |
| Other | ||||

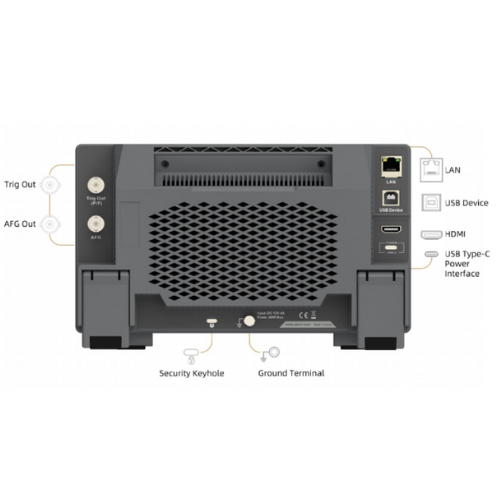

| Communication Interface | HDMI, USB device, USB Host, Trig Out (P/F), LAN | |||
| Display | 7 inch (1024×600), capacitive multi-touch screen | |||
| Power supply interface | Type-C [1] | |||
| Dimension (W x H x D) | 10.24 in × 6.30 in × 3.07 in (26 cm × 16 cm × 7.8 cm) | |||
| Weight | 3.31 lb (≈ 1.5 kg) (package excluded) | |||
