Overview

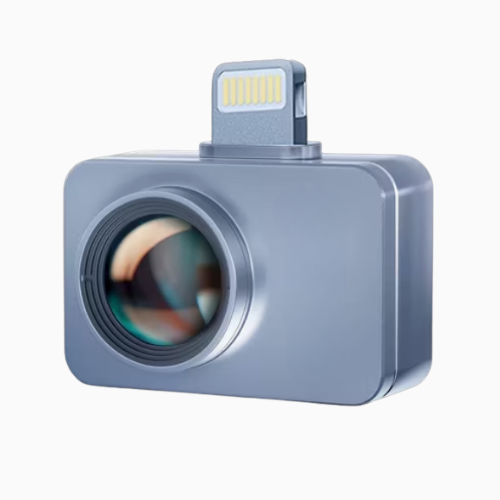

Enviro Test Construct Handheld Infrared Thermal Imager with 15X Zoom offers precise thermal measurements and high-quality imaging. It delivers ±2°C (±3.6°F) temperature accuracy with a 256×192 IR resolution. This device features a 25Hz frame rate, 15X digital magnification, and low power consumption, making it suitable for industrial inspections, electrical diagnostics, and equipment monitoring. Compact and portable, it comes in a sturdy 11.81 × 7.87 × 3.94 in (30 × 20 × 10 cm) package for convenient transport.
Features
- Accurate infrared temperature measurement with ±2°C (±3.6°F) precision
- 256×192 IR resolution for clear thermal imaging
- 25Hz frame rate for smooth monitoring
- 15X digital zoom for detailed inspection
- Low power consumption at 0.33 W
- Compact and portable design with included protective packaging
Technical Specifications
| Model | P2 Pro Android / P2 Pro iOS |
| IR Resolution | 256 × 192 @ 12 μm |
| Frame Rate | 25 Hz |
| NETD (Noise Equivalent Temperature Difference) | ≤ 40 mK @ 25 °C (77 °F), F#1.0 |
| Temperature Accuracy | ±2 °C (±3.6 °F) PCB Accuracy |
| IQ+ Precision Temp | Supported |
| Razor X | Supported |
| Colorbar Tech | Highlight temperature target |
| Free Prof Analysis | Point / Line / Plane data analysis |
| Temperature Correction | Emissivity, Distance, Ambient Temperature |
| Palettes | 12 Palettes (White Hot, Black Hot, Iron Red, Red Hot + 8 others) |
| Accessories | Magnetic Macro Lens |
| Circuit Board Testing Capability | Observe 0.25 mm resistor (0.0098 in) |
| Magnification | 15X Zoom |
| Infrared Core | Thermal Master High-Sensitivity Core |
| Focusing Mode | Athermalized Prime Lens |
| Adaptation Method | Smartphone / Tablet / Computer |
| Application Scenarios | Electrical, HVAC, Pipeline, House, Automotive Inspections |
| Power Consumption | 0.33W |
| Battery Life | 300–480 minutes (e.g. Samsung Galaxy S23+ with 4700mAh battery: 367 minutes) |
