Overview

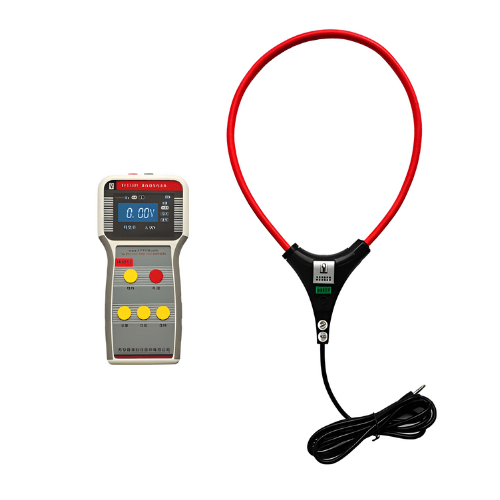

Enviro Test Construct Flexible Clamp Meter with AC Voltage & Power Analysis is applicable to measure AC voltage in low-voltage line and low-voltage primary large current, and the measurement is quick and time saving. It can be widely used in substations, power plants, power inspection departments, industrial and mining enterprises, detection stations, electrical maintenance departments for current detection, electricity anti-stealing and field electrical operations, etc.
Features
- Measures AC voltage in low-voltage lines, large current, amplitude, phase etc
- Real-time displays voltage and current waveforms, analyzes low-voltage power quality

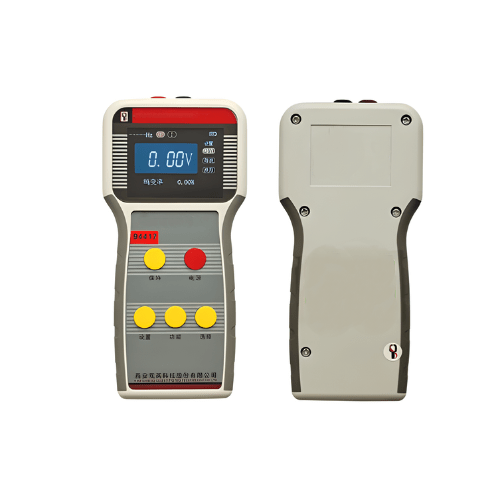

- 2.4-inch LCD for direct measurement result display
- Bluetooth interface, APP for real-time viewing, saving, and sharing records

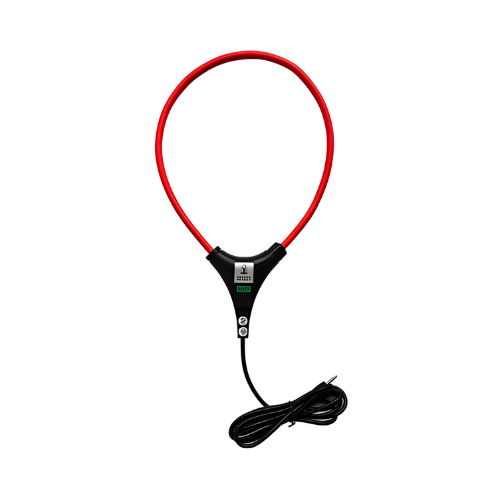

- Suitable for low-voltage busbar field measurements with 200mm conductor diameter
Technical Specifications
| Power Supply | Built-in Battery |
| Screen | 2.4-inch LCD |
| Voltage Range | 500 V, 200 V or 20 V |
| Voltage Resolution | 1 V, 0.1 V or 0.01 V |
| Voltage Accuracy | ±0.2% |
| Current (3000 A current clamp) | Range: 3000 A, 300 A or 30 A Resolution: 1 A, 0.1 A or 0.01 A Accuracy: ±1% |
| Precision | Voltage: ±0.2% FS, Current: ± (0.5% RD + 0.5% FS) |
| Phase | Range: 0 ° to 360 ° Resolution: 0.1 ° Accuracy: ± 3 ° |
| Power Factors | Range: -1.000 to 1.000 Resolution: 0.0001 |
| Active Power | Range: 0 W to 999.9 W, 1.000 Kw to 1500 Kw Resolution: 0.1 W, 0.001 Kw Accuracy: ±1% |
| Reactive Power | Range: 0 var to 999.9 var, 1.000 KVar to 1500 KVar Resolution: 0.1 Var, 0.001 Var Accuracy: ±1% |
| Amplitude Range Of The Measured Signal During Phase And Frequency Measurement | Current: 3 A to 3000 A, 3 A to 10 A |
| Frequency | 45 Hz to 65 Hz |
| Amplitude Range | 3 A to 3000 A, 3 A to 10 A |
| Material | ABS |
| Size | 6.7 in x 3.1 in x 1.2 in (170 mm x 80 mm x 30 mm) |
| Weight | 0.66 Ib (0.3 Kg) |
