Overview

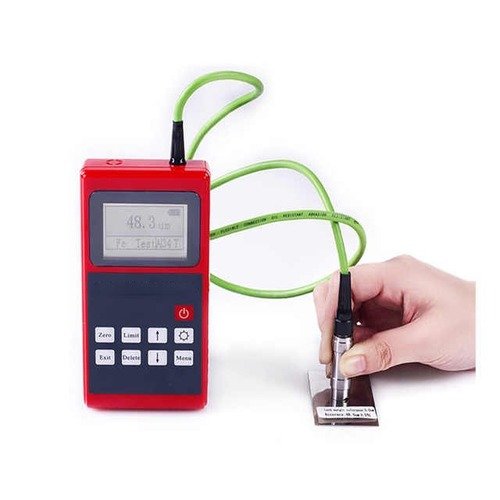

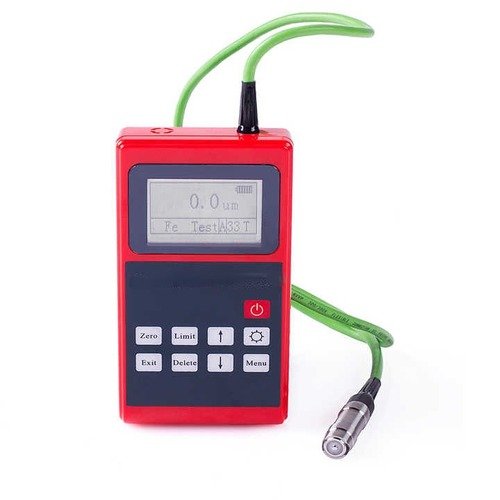

Enviro Test Consrtuct zinc coating thickness gauge meter offers user-friendly functionality with two power-off options, manual and automatic. Its limit settings feature sounds an alarm when measurements exceed preset limits, ensuring accuracy and quality control. The gauge also provides a convenient data management system, allowing for the deletion of individual or all stored measurements to facilitate new measurements. It is a versatile tool for reliable zinc coating thickness assessment and analysis.
Features
- Two methods of power off
- Manual & Automatically
- Limit settings alarms
- Deleting function
- Saving function capable of 500 sets of measurement value
- Five statistical data
Technical Specifications
| Operating principle | Magnetic induction |
| Measuring range (µm) | 0 μm to 1250 μm |
| Probe | Settled |
| Shell | Plastic |
| Accuracy | ±[(1% to 3%)H +1] |
| Low range resolution | 0.1 μm |
| Diameter of the min area | Φ7 |
| Critical thickness of substrate | 0.019 in (0.5 mm) |
| Power supply | AAA Alkaline battery |
| Memory | 500 Groups measured data |
| Dimensions | 4.52 in x 2.75 in x 1.18 in (115 mm × 70 mm × 30 mm) |
