Overview

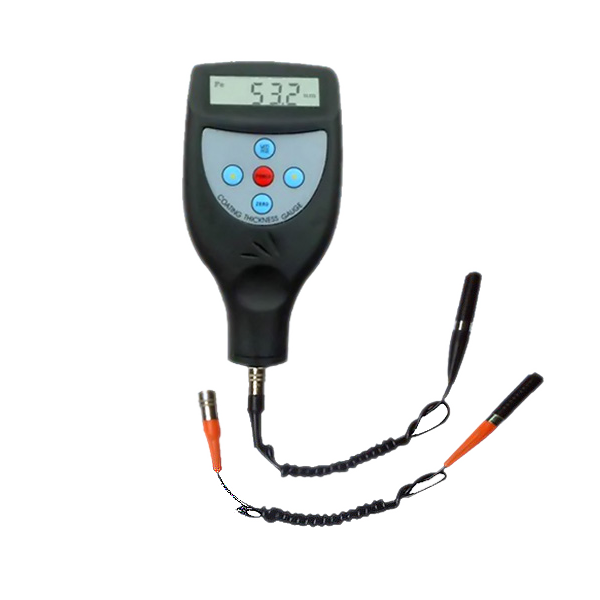

GAO Tek Coating Thickness Gauge with Iron-Based measures the thickness of non-magnetic cover layer on metallic coatings without destruction.
Key Features
- Indication of battery voltage
- Auto shutdown
- Metric is optional
- Measuring ferromagnetic metal substrate thickness of the non-magnetic coating.
Technical Specifications
| Model | HZ-1867C Iron-based coating thickness gauge |
| Measuring range | 0~1000um/0-40mil |
| Resolution | 0.1/1 1 um (less than 100um) |
| Minimum measuring area | 0.23 in(6mm) |
| Thinnest substrate | 0.01in(0.3mm) |
| Minimum measuring area | 0.23 in(6mm) |
| Thinnest substrate | 0.01in(0.3mm) |
| Battery voltage indication | Low voltage tips |
| Use of the environment | Temperature:32-104F(0-40 Degree Celsius), Humidity:10-90%RH |
| Accuracy | ±(5%n+1) or ±2.5um |
| Power | Batteries |
| Outside dimension | 6.33 x 2.71 x 1.25 in(161×69×32mm) |
| Weight | 0.46 lb.(210g) |
| Select the measuring range | 0-200um to15000um |
| Metric | optional |
