Overview

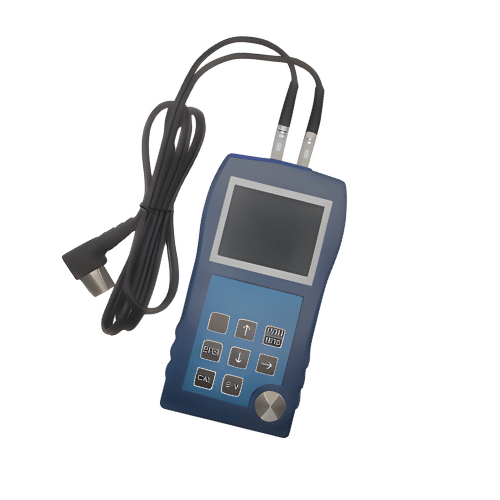

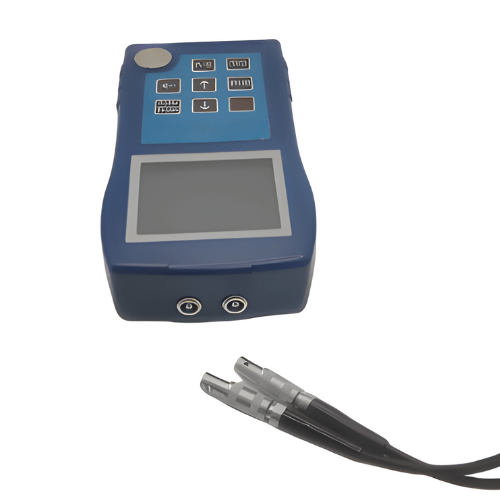

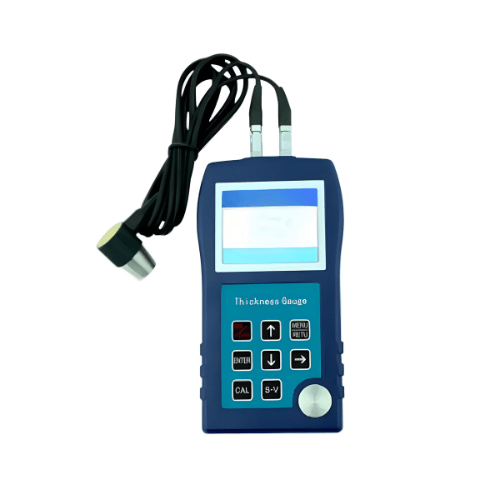

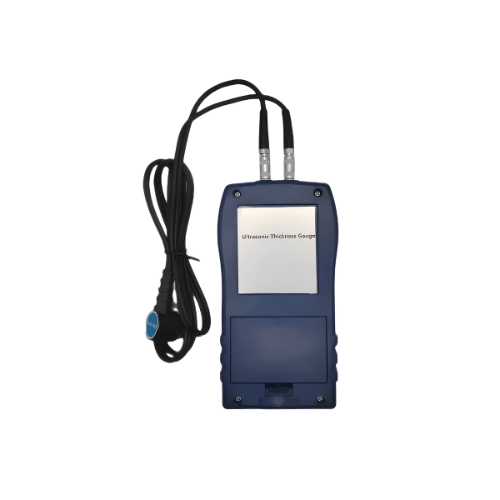

Enviro Test Consrtuct Ultrasonic Thickness Gauge is a kind of high-precision thickness gauge which uses ultrasonic measurement principle, adopts high-speed processor and high integrated chip design to realize portable, nondestructive, fast and accurate measurement of thickness and sound velocity of various materials. What’s more, it can measure thickness of material through the coating on it.
Features
- Measurement for various material
- Optional standard mode and penetration mode
- Metal port for detachable probe and reducing the damage
- 9 in to 27.5 in wide range for standard probe
- Standard probe can be replaced by multiple special probe
- Standard block calibration and sound velocity calibration
- Keeping velocity of 7 common material
- Total 2000 data storage in 10 groups
Technical Specifications
| Measuring Range | 0.3 in to 11.8 in (0.9 mm to 300 mm) |
| Microcrystal Probe | 0.03 in to 1.9 in (1 mm to 50 mm) |
| Measurement Accuracy | ± 1%H + 0.03 in ±（1%H + 0.1) mm |
| Power Supply | 4.5 VDC |
| Screen | TFT Color screen 2.3 inch |
| Working Temperature | 14°F to 122°F (- 10°C to 50°C) |
| Working Humidity | 20% to 90%RH |
| Size | 5.1 in x 2.7 in x 0.9 in (130 mm × 70 mm × 25 mm) |
| Weight | 0.28 lb. (125 g) |
| Measuring Range (Standard) | 0.03 in to 19,69 in (0.75 mm to 500 mm) |
| Standard Mode | 0.03 in to 19,69 in (0.75 mm to 500 mm) |
| Penetration Mode | 0.1 in to 0.98 in (2.5 mm to 25 mm) (steel) |
| Microcrystal Probe | 0.03 in to 3.94 in (0.75 mm to 100 mm) Probe：7.5PΦ6mm |
| High Temperature Probe | 0.06 in to 7.87 in (1.5 mm to 200 mm) |
| Display Resolution | 0.01 mm |
| Measurement Accuracy | ±（0.5%H+0.05）mm |
