Overview

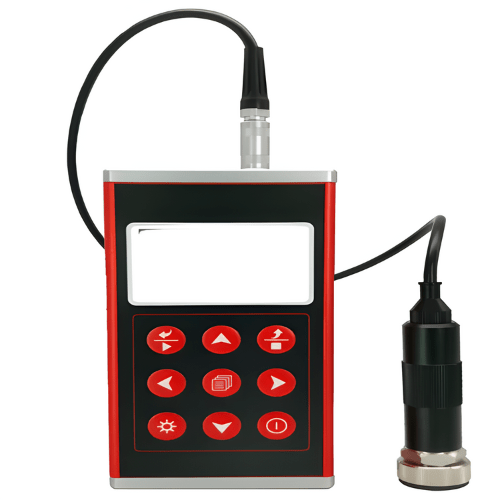

Enviro Test Consrtuct Portable Vibration Meter, portable vibration meter is suitable for routine vibration measurement, especially in reciprocating machinery vibration measurements. It can not only measure the vibration acceleration, velocity or displacement, but also for rotational speed measuring. In addition, It can measure the frequency or rotation rate of vibration. This product use optimized-filtering method to ensure stable and accurate measurement indication in multi-interference measurements environment. And the product of smart appearance, white backlit display is easy to use in complex environment.
Features
- All English display, easy to operate.
- White backlight for better operation in the dark.
- It is suitable for acceleration Peak data, velocity RMS data and Displacement Peak-Peak data measurement.
- The frequency or rotation rate can be measured
- Storage up to 100 points (10 data per point), a total of 1000 data and time.
- Warning limit can be preset.
- Alarm when the measuring value exceeds the warning limit.
- Provide high-performance rechargeable Li battery and charging control circuit inside with extra-long working and standby time.
- Battery sign, display the current remaining capacity.
Technical Specifications
| Testing Range | Acceleration :0.32 ft/s to 655.85 ft/s (0.1m/s2 to 199.9m/s2)(peak) Velocity: 0.0039 in/s to 7.87 in /s (0.01 cm/s to 19.99cm/s)(RMS) Displacement: 3.937008e-5 in to 0.078 in (0.001 mm to 1.999mm)(peak-peak) |
| Freq Range | Acceleration(LO): 10 Hz to 1 kHz Acceleration(HI): 1 kHz to 10 kHz Velocity: 10 Hz to 1 kHz Displacement : 10 Hz to 500 Hz |
| Frequency Measurement | 3 Hz to 10 KHz |
| Rotation Rate Measurement | 180 rpm to 60000 rpm |
| Tolerance | + 5 % |
| Temp | 32 ˚ F to 104 ˚ F (0°C to 40°C) |
| Display | LCD, 128 x 64 pixels with LED backlight |
| Data Memory | 100 x 10 |
| Data Interface | USB |
| Limit Alarm | Yes(Beep) |
| Battery | AAX2 |
| Continuous Working Time | About 100 h(without backlight) |
| Overall Dimensions | 4.96 in x 2.60 in x 1.22 in (126 mm x 66 mm x 31 mm) |
| Weight | 0.50 lbs (228 g) |
