Overview

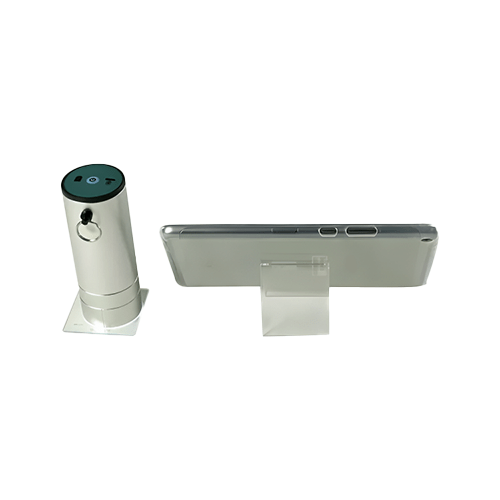

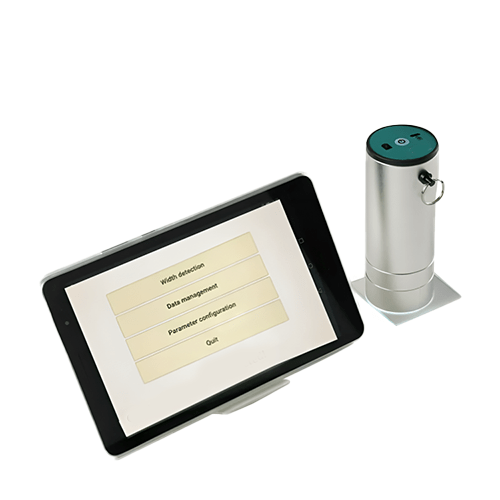

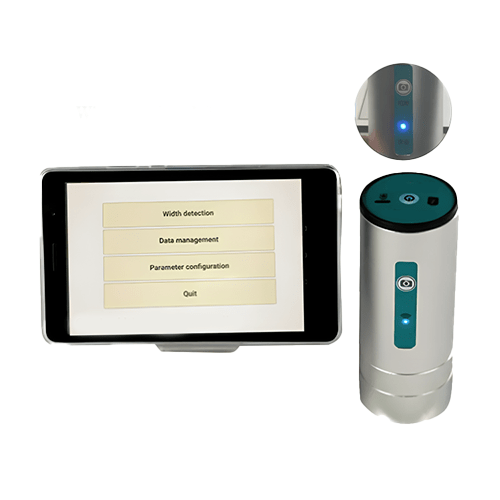

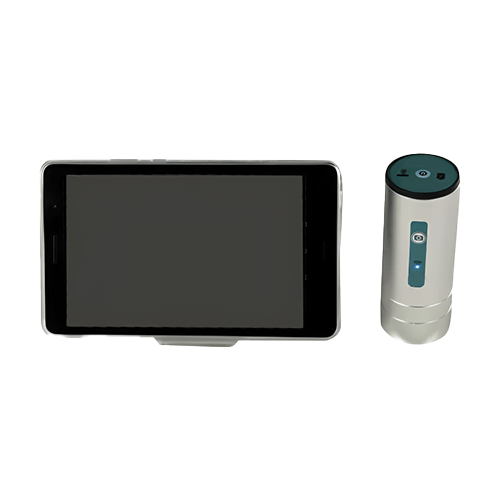

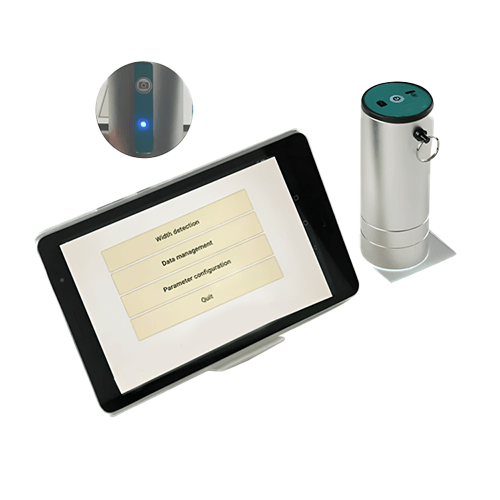

Enviro Test Construct Wireless Ultrasonic Crack Detector employs both automatic interpretation and manual interpretation methods. Its primary application is in measuring crack width in concrete structures such as houses, roads, and bridges.
Technical Specifications
| Test Scope | 0 in to 0.39 in (0 mm to 10 mm) |
| Measurement Accuracy | 0.0004 in (0.01 mm) |
| Estimable Accuracy | 0.0004 in (0.01 mm) |
| Magnification | Digital 60 times |
| Width Detection | stand by |
| Timing Monitoring | not supported |
| Storge Capacity | 32GB (expandable) |
| Data Transmission Mode | Wireless cloud transmission(optional) |
| Probe Power Supply Mode | Built-in rechargeable lithium battery |
| Operational Mode | Touch screen + shortcut |
| Connection Mode | Wi-Fi connection |
| Interpretation Method | Automatic interpretation/ manual interpretation |
| Working Environment | Temperature: 14 °F to 104 °F (-10 ℃ to 40 ℃) Humidity: ＜ 90% RH |
| Material | Engineering plastic |
| Dimension | 16.5 in x 5.51 in x 13.2 in (420 mm x 140 mm x 335 mm) |
| Weight | 9.9 lbs (4.5 kg) |
