Overview

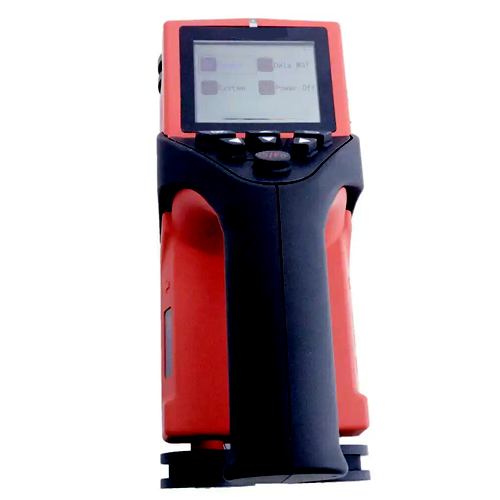

Enviro Test Construct integrated rebar detector are mainly used for detecting the internal reinforcement position, the protective layer thickness, reinforcement spacing and diameter of rebar. It can accurately draw the distribution map of the whole rebar, to provide test data with high precision and high speed.
Features
- 8 in – high resolution color LCD screen (320 pixels x 240 pixels), whether in indoor or outdoor, any situation can be clearly visible detection data
- Multi-coil structure design, faster, higher precision, stronger resolution
- With built-in high-capacity lithium battery, the power consumption is low, in the case of the battery is full the standby time is about 16 hours
- Data management mode in the data storage, view, delete and other functions, can store about two hundred thousand rebar measuring point data
- Standard test block which can be configured with special and unique design
- Equipped with medium and large steel bar detection software, it is convenient for professional data analysis, data processing, and generating complete reports on PC
Technical Specification
| Items | Values |
| Applicable range of Rebar（mm） | 0.23 in to 1.96 in (6 mm to 50 mm) |
| Protective layer thickness range mm | Small range：0.03 in to 3.15 in (1 mm to 80 mm) Large range：0.19 in to 7.28 in (5 mm to 185 mm) |
| Screen: | 320 × 240 |
| Power supply: | Built in high-capacity lithium battery |
| Working hours | ≥ 16h |
| Communication | USB interface |
| Storage | 200 K Measuring point of steel bar |
| Operation | Silicone keypad |
| Size（mm） | 8.622 in × 3.622 in × 4.173 in (219 mm × 92 mm × 106 mm) |
| Weight（Kg） | 1.32 Ib (600 g) (Battery included) |
