Overview

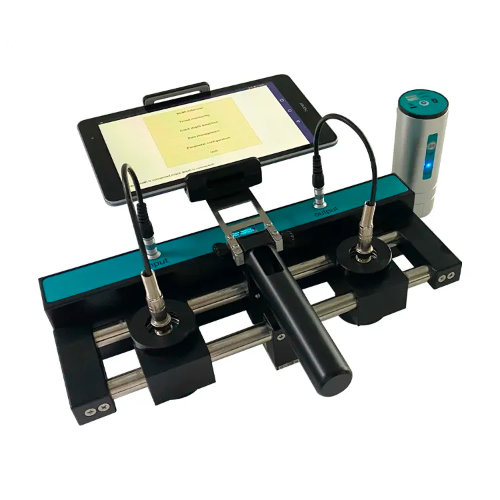

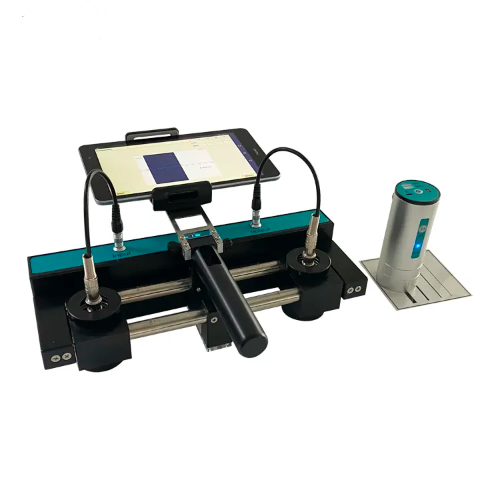

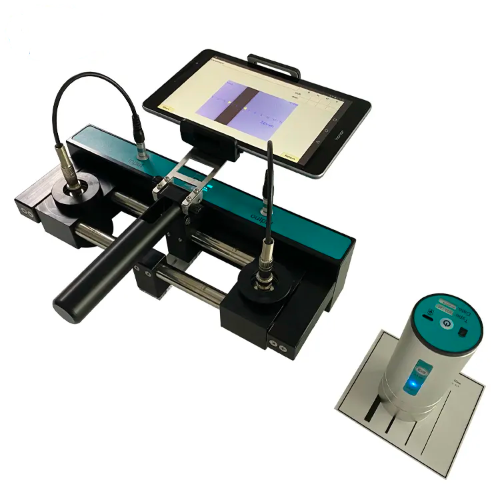

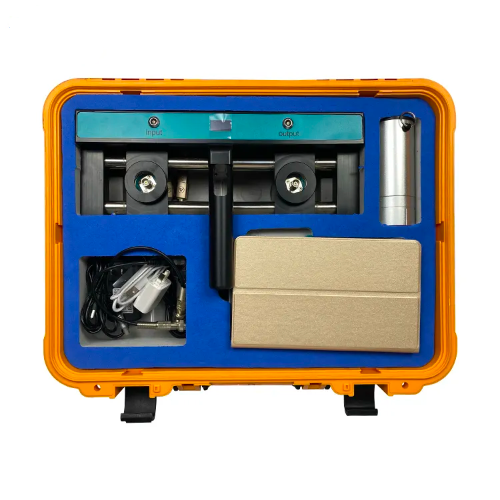

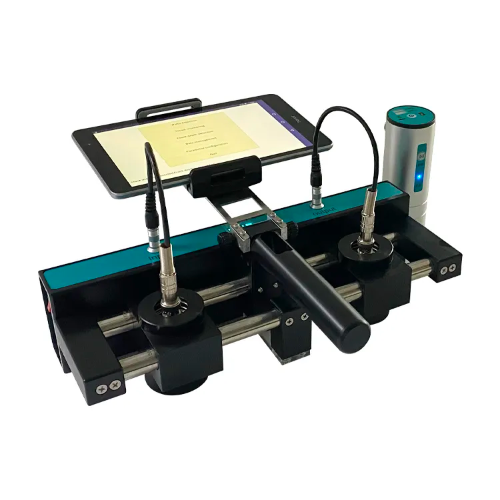

Enviro Test Construct wireless crack detector features integrated crack detectors typically refer to crack detection devices that incorporate wireless communication capabilities. This wireless feature allows for remote monitoring, data transmission, and real-time analysis of crack detection results. These devices can offer increased convenience, flexibility, and accessibility compared to traditional wired crack detection systems. It is used for automatic measurement of crack width and crack depth on structure surface, automatic interpretation and storage of data.
Features
- New upgraded wireless cloud transmission function
- Original wireless camera probe, snap button operation is convenient
- Chinese full touch operation intelligent interpretation of oblique cracks, without vertical
- images can be zoomed in and out, and the interface display scale can be manually assisted to interpret
- The sounding bracket does not need to be crossed, saving time and effort
- The data analysis and report form are included in the main unit
Technical Specifications
| Test range and accuracy | 0 in to 0.39 in (0 mm to 10 mm): 0.004 in (0.01 mm) |
| Magnification | Digital 60 times |
| Operational mode | Touch screen + shortcut keys |
| Connection mode | Wi-Fi connection |
| Data transmission mode | Wireless cloud transmission (optional) |
| Measuring method | Automatic/ manual |
| Power supply mode | Built-in lithium battery |
| Working hours | More than 10 hours |
| Measurement accuracy | Less than 0.19 in (5 mm) or 2% to 10% of the actual depth |
| Operational mode | Touch screen + probe automatic trigger |
| Connection mode | Bluetooth connection |
| Measuring method | Fast/standard measurement |
| Power supply mode | Built-in lithium battery |
| Working hours | More than 10 hrs |
| Working environment | 14 °F to 104 °F (-10 ℃ to 40 ℃) ＜90% RH |
| Test scope | 0.19 in to 19.68 in (5 mm to 500 mm) |
