Overview

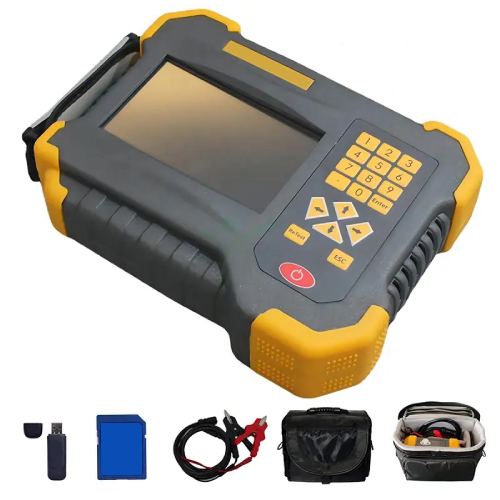

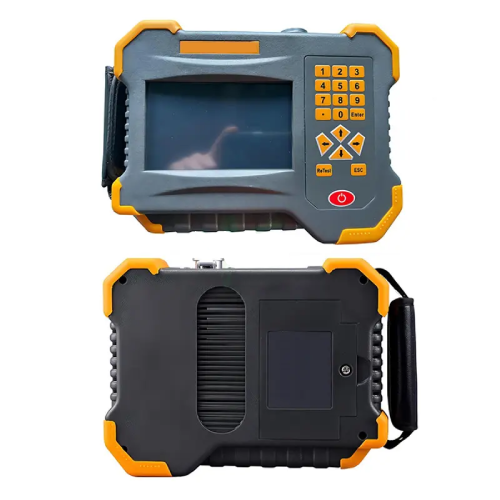

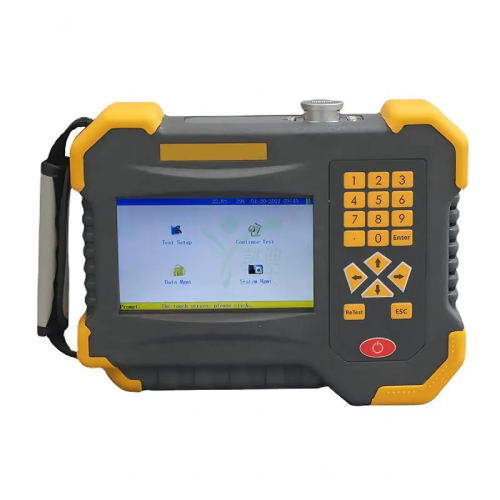

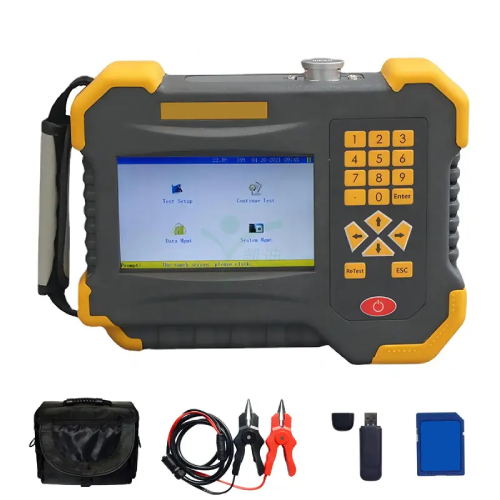

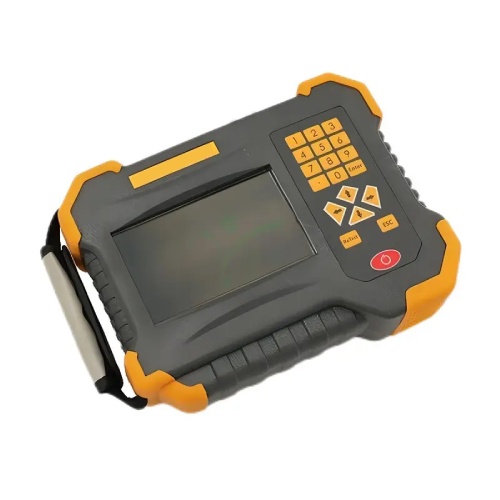

Enviro Test Construct Versatile Conductance Tester, a portable device designed for swift and precise assessment of battery operational parameters. By conducting real-time tests, this tool can promptly display and log critical battery data including voltage, internal resistance, and connection bar resistance for multiple battery groups. It excels at distinguishing healthy batteries from those in poor condition, and when combined with a computer and specialized battery analysis software, it transforms into an intelligent testing system. This integrated setup enables continuous monitoring of battery degradation trends and provides early warning alerts, empowering engineering and management personnel to take proactive measures as needed.
Features
- Accurate, auto-range, ample data storage
- Auto-ranging from 0.000 S to 9990 S
- Stores 999 battery parameters, 500 set parameters
- Tests battery capacity: 5 AH to 6000 AH
- 5 in (127 mm) color touch LCD, intuitive interface
- Built-in chart and column analysis
- Battery capacity analysis, advantages/disadvantages
- Real-time voltage display, ripple calculation
- Data stored on PC via SD interface
- Strong data management, standalone operation
- Enhanced overvoltage and overcurrent protection
- Simplified circuit with new SOC chips
- Dual power supply for convenience
- Battery under voltage prompt for accuracy
- Compact and lightweight design
Technical Specifications
| Measuring Range of Internal Resistance | 0.000 mΩ to 9.9999 mΩ |
| Voltage Measuring Range | 0.000 V to 25 V |
| Internal Resistance | 0.001 mΩ |
| Minimum Voltage Measurement Resolution | 1 mV |
| Internal Resistance Accuracy | ±0.5% rdg ±6 dgt |
| Voltage Measurement Accuracy | ±0.2% rdg ±6 dgt |
| Power Supply | 12 V, Rechargeable Lithium Battery |
| Power Consumption | Standby for 8 hours |
| Storage Capacity | 64 Mbit Flash + 8 GB SD Card |
| LCD | 5-inch (127 mm) Color Touch Screen |
| Weight | 2.43 lb (1.1 kg) |
| Dimensions | 8.66 in x 6.69 in x 2.05 in (220 mm x 170 mm x 52 mm) |
