Overview

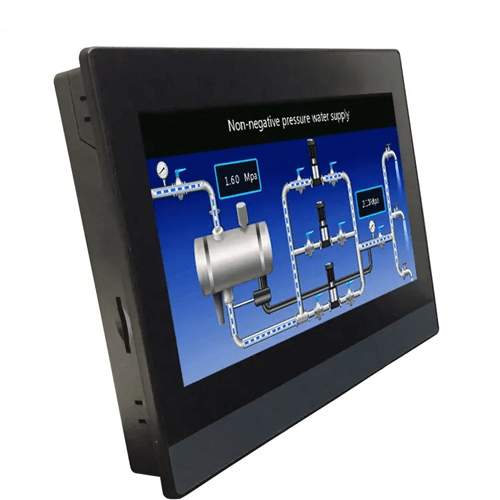

Enviro Test Construct USB HMI Monitor is a versatile and cost-effective solution for enhancing your industrial control systems. With USB connectivity and a high-resolution touchscreen display, it offers real-time monitoring and control of your processes. Its compact design ensures it fits seamlessly into your setup, and its durable construction ensures it can withstand industrial environments. This plug-and-play monitor simplifies the integration of an HMI interface into your PLC system, making it a valuable addition to your industrial toolkit.
Features
- USB Connectivity
- High-Resolution Display
- Touchscreen Interface
- Compact Design
- Plug-and-Play
- Durable Construction
- Real-Time Monitoring
- Cost-Effective
Technical Specifications
| Programming Software | Mochuan studio |
| Compatible Labtop OS | Win 7/ Win 10/ Win XP |
| CPU | 600 MH ARM Cortex-A8 |
| Touch Screen | 4 wire resistive touch screen |
| Screen Size | 7 in 16:9 tft lcd |
| Resolution | 800 x 480 |
| Colors | 24-bit colors |
| Brightness | LED |
| Backlight | 50,000 hours |
| Storage | 128 M Flash+128 m DDR3 |
| USB | USB Host 2.0 x 1USB Device 2.0 x 1 |
| Serial Port | COM1:RS 232 485 422COM3:RS 232 |
| Working Power | DC 24 V, supporting working range: DC 9 V to 28 V |
| Power Consumption | 10 W |
| Power Down Allowed | 5 ms |
| Working Temperate | 32 °F to 122 °F (0 °C to 50 °C) |
| Storage Temperate | -68 °F to 140 °F (-20 °C to 60 °C) |
| Operating Humidity | 10% RH to 90% RH (No condensation) |
| Vibration Endurance | 10 Hz to 25 Hz (X/Y/Z 2G/30Min) |
| Protection Level | Front IP 65 (with NEMA panel), Back IP20 |
| Cooling | Natural air cooling |
| Material | ABS |
| Response Time | 5 ms |
| Interface Type | Serial, usb |
| Panel cutout(mm) | 7,55 in x 5,43 in (192 mm x 138 mm) |
| Dimension(mm) | 8.03 in x 5.70 in x 1.33 in (204 mm x 145 mm x 33.8 mm) |
| Weight(g) | 1.23 lb (560 g) |
