Overview

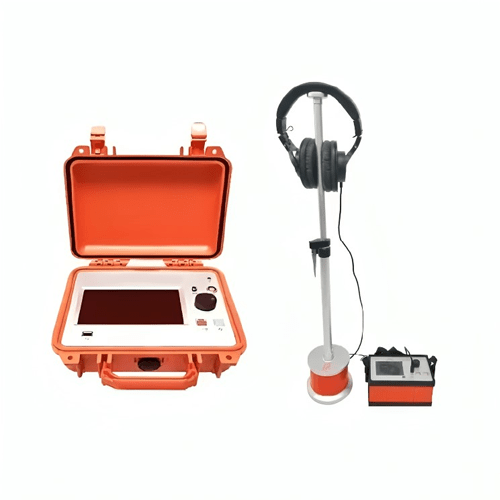

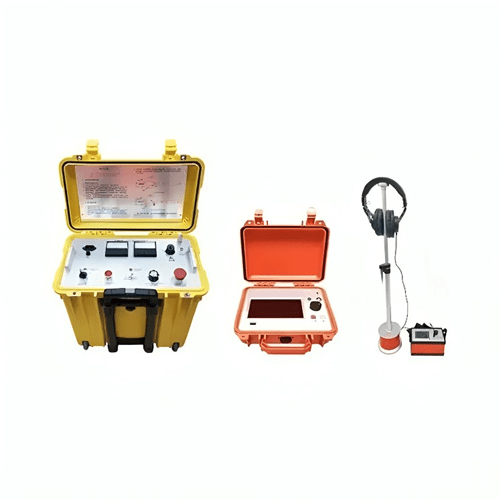

Enviro Test Construct Underground Cable Fault Locator with a 15kV max output and 900J impulse energy, DC voltage output of 0 kV to 15 kV continuously adjustable.
Technical Specifications
| DC Voltage Output | 0 kV to 15 kV continuously adjustable |
| Output Power | Peak 2000 W |
| Capacitance | 8 μf |
| Max Discharge Energy | 900 J |
| Power Supply | Lithium battery |
| Size | 19.7 in x 12 in x 18 in (500 mm × 305 mm × 457mm) |
| Weight | 65 lb (29.5 kg) |
| Low Voltage Impulse Launching Voltage | 30 V |
| Sampling Frequency | 200 MHz |
| Max Ranging Scope | 100 km |
| Dead Zone | 2m |
| Max Resolution | 0.4 m |
| Power Supply | AC 220 V, 50 Hz |
| Size | 10.7 in x 8.5 in x 3.1 in (274 mm × 218 mm × 81 mm) |
| Weight | 7.7 lb (3.5 kg) |
| Precision Of Point Positioning | 0.1 m |
| Precision Of Path Location | 0.1 m |
| Precision Of Step Voltage Method | 0.1 m Anti-noise mode: Strong noise reduction mode |
| Work Mode | Background suppression noise reduction mode Point location mode: Intelligent Acosto-Magnetic Time Difference Mode |
| Display Mode | Colour LCD |
| Power | Li-battery, 12 h standby |
