Features
- Three connection modes
- Detecting the position, path, depth and tube current of underground pipes and cables
- Left and right positioning arrows indicate the target pipeline position fast and accurately
- Front and rear arrows and db value indicates the point and size of the coating damage
- Backlight suitable for urgent use in the nightime
- Optional gps geolocation with the automatic mapping of the pipelines
- Optional professional data analysis software with the automatic detection report
- Locating the breakdown points
- Detecting the insulation damages of underground pipeline and cable
- Measuring the current of the pipeline and cable applied by the transmitter
- Measure the output voltage, line voltage, line current, impedance and power
- Test the cable continuity and insulation quality before and after cable fault finding
- Suitable for testing the cable when they cannot be directly applied to the signal of the place
Technical Specifications
| Transmitter | Receiver | ||
| Output | Direct Connection output, Clamp Coupling Output (optional), Radiation output, fault location booster (optional) | Receiving mode | Built-in coil,Built-in magnetic filed sensor Flexible clamp,Sensor,A frame |
| Output Frequency | 128 Hz, 512 Hz, 1 KHz, 2 KHz, 8 KHz, 33 KHz, 65 KHz, 83 KHz | Receiving frequency | Active frequency: 128 Hz, 512 Hz, 1 KHz, 2 KHz, 8 KHz, 33 KHz, 65 KHz, 83 KHz Power frequency: 50 Hz / 60 Hz, 4 to 24 kHz Radiation frequency |
| Output power | 15 Wmax, 10 levers adjustable | Pipe detection mode | wide peak method, narrow peak method, valley method, history curve, frequency spectrum |

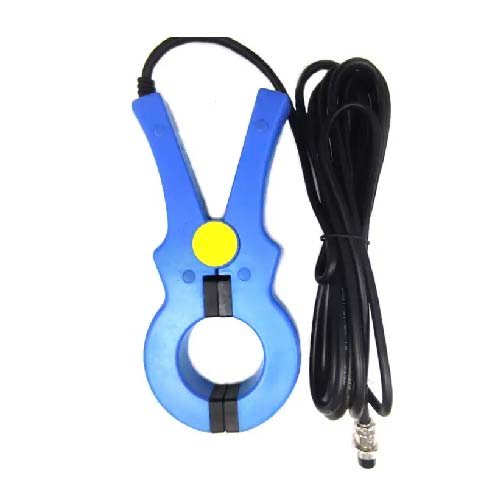

| Over voltage, over current protection | auto | Cable identification mode | flexible Clamp (optional) intelligent identification and sensor (optional) identification |
| HMI | 320 x 240 Black and white LCD | HMI | 320 x 240 LCD color LCD, clear under sunshine |
| Power supply | 4 X built-in 18650 Li-on batteries, standard 7.4 V, > 6 AH | Built-in battery | 2 x 18650 Li-on batteries, standard 7.4 V, > 3 AH |
| Volume | 11.02 in x 8.6 in x 3.5 in (280 mm x 220 mm x 90 mm) | Volume | 26.7 in x 4.7 in x 10.9 in (680 mm x 120 mm x 277 mm) |
| Weight | 5.07 lb (2.3 kgs) | Weight | 4.4 lb (2.0 kgs) |
| Charger | DC 8.4 V, 2 A | Charger | AC 100 to 240 V, 50 / 60 Hz |
| Temperature | 14 F to 104 F (-10 ℃ to 40 ℃), humidity 5 to 90 %, elevation < 2.7 miles (4500 m) | ||
