Overview

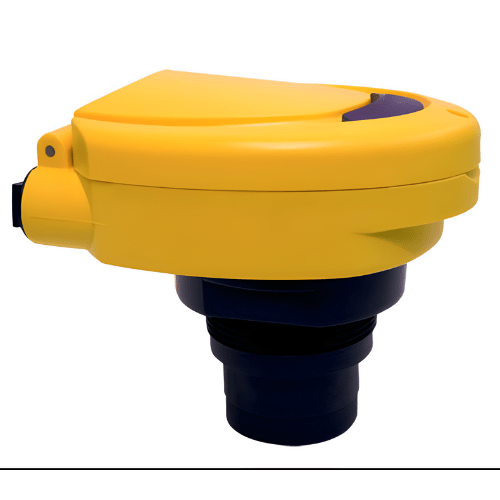

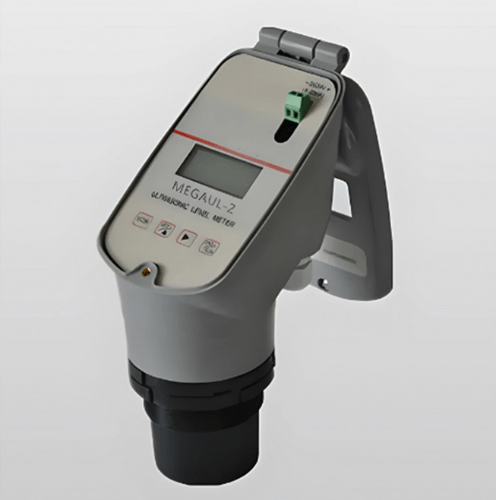

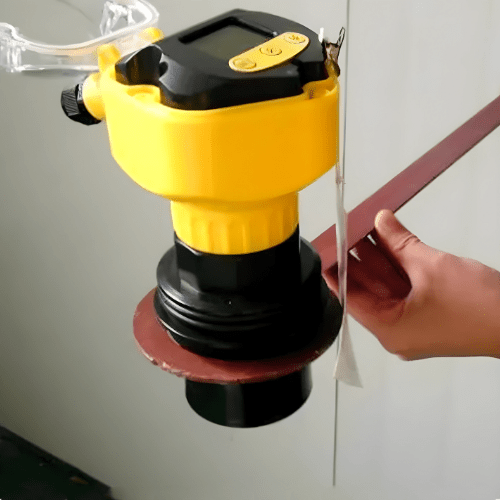

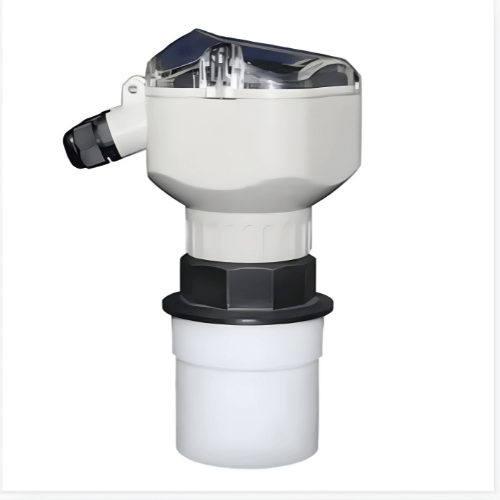

Enviro Test Construct Ultrasonic Liquid Flow Meter for measuring liquid surface, usually install on the top of liquid level. Firstly, the sensor emits ultrasonic wave to the liquid surface. Secondly, wave reach to the liquid level and is reflected, sensor receive the echo for processing. Thirdly, the microprocessor will calculate difference of time between ultrasonic emission and receiving, then convert to distance between sensors to the liquid.
Technical Specifications
| Accuracy | ±0.25% of rate |
| ±0.5% of rate | |
| Resolution | Range<10m: 0.5m |
| Range>10m: 10m | |
| Frequency | 40 KHz |
| Power Supply | 24 V DC and 220 V AC |
| Power Consumption | <1 W |
| Output | Modbus RS485 and 4 to 20mA |
| Case Material | PA6/ABS |
| Blind Area | 0.2 m to 0.9 m |
| Maximum Load | 750 Ω |
