Overview

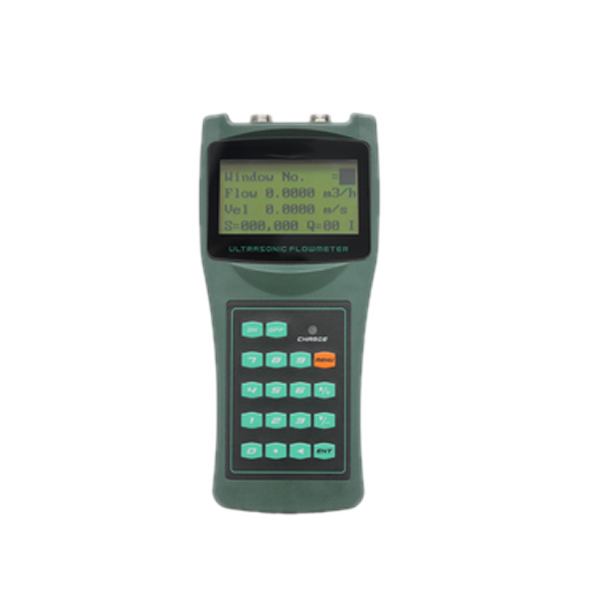

Enviro Test Construct Ultrasonic Flow Meter with Data Logger measures fluid velocity within a closed conduit with accuracy, detects virtually all liquids. The new ultrasonic flow meter has been manufactured with patented technologies and is equipped with more functions, providing advanced performance than previous versions.
Version 8 ultrasonic flow meter has been upgraded based on the Version 7 ultrasonic flow meter. The new version retains most of the excellent features and functions of the previous versions. Functions include the pulse measurement technology, the ultrasonic igniting and the small signal receiving of circuits.
The main improvements are made on the battery supply circuit and on the transmitting circuits. All other circuits are simply integrated into this new version without major modifications.
The hardware features easy operation use, high accuracy and outstanding reliability, while the software provides a very user friendly interface with many functions. The flow meter employs the patented balanced lower voltage multi-pulse igniting circuit which increases the anti-interference ability magnificently so that the flow meter will work in demanding industrial environments such as those with power frequency transverses nearby.
Key Features
- Measures the fluid velocity of liquid.
- Non- fouling operation and easy installation
- Built-in data logger can store over 2000 lines of data
- 7-digit press-key-to-go totalizer for calibration
- 3 AAA Ni-H built-in batteries. When fully recharged it will last over 10 hours of operation.
- 5% of linearity
- 2% of repeatability
- 4 flow totalizers
- Patented balanced lower-voltage multi-pulse ultrasonic igniting
- Works properly near transverses
- 100 pico-second resolution of time measurement
- The built-in rechargeable Ni-H battery can work continuously for more than 12 hours without recharge.
Technical Specifications
| Linearity | 0.5% |
| Repeatability | 0.2% |
| Accuracy | ±1% of reading at rates>0.2 mps |
| Response Time | 0-999 seconds, user-configurable |
| Velocity | ±32 m/s |
| Pipe Size | 0.78 – 236.22in (20mm-6000mm) |
| Rate Units | Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallons. User configurable. |
| T otalizer | 7-digit totals for net, positive and negative flow respectively |
| Liquid Types | Virtually all liquids |
| Security | Setup values Modification Lockout. Access code needs unlocking |
| Display | 4×16 English letters |
| Communication Interface | RS-232C, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made on enquiry. |
| Transducers | Model M1 for standard, other 3 models for optional |
| Transducer Cord Length | Standard 2×10 meters, optional 2x 500 meters |
| Power Supply | 3 AAA Ni-H built-in batteries. When fully recharged it will last over 10 hours of operation. 100V-240VAC for the charger |
| Data Logger | Built-in data logger can store over 2000 lines of data |
| Manual Totalizer | 7-digit press-key-to-go totalizer for calibration |
| Housing Material | ABS |
| Case Size | 3.9*2.5*0.78 in (100x66x20mm) |
| Handset Weight | 514g (1.2 lbs) with batteries |
