Overview

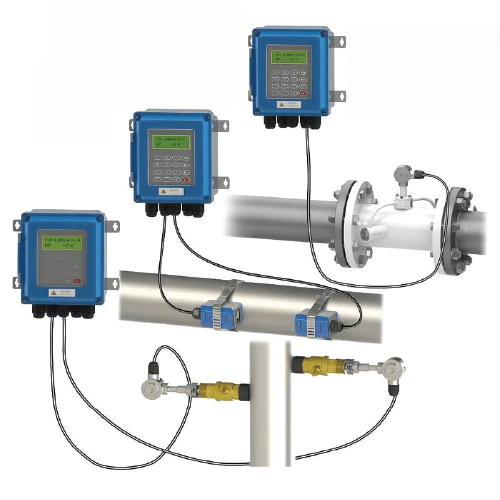

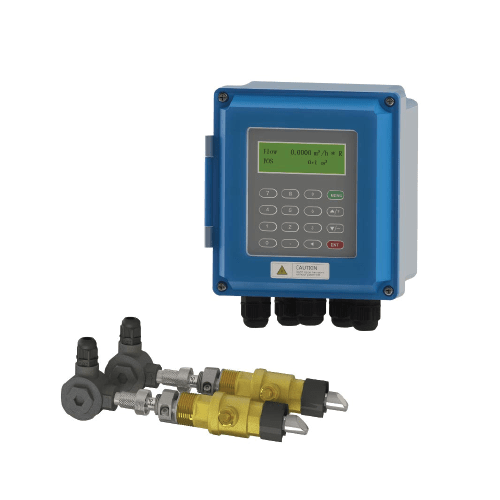

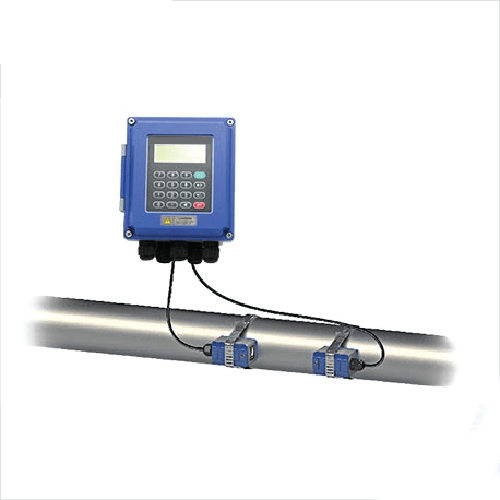

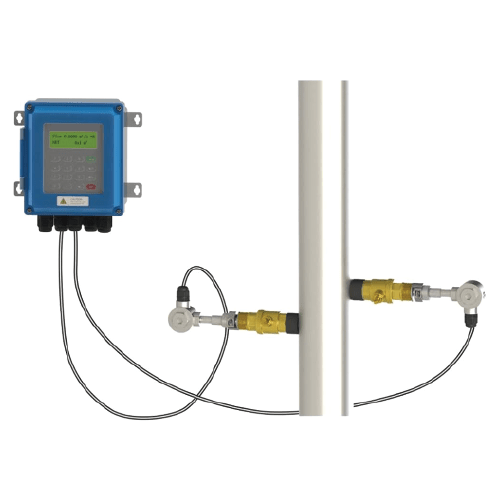

Enviro Test Construct ultrasonic flow meter water flowmeter has a high-quality, low-cost transit time ultrasonic flow meter used to measure liquid flow in a full or closed pipe. The meter is designed with ease of operation, high accuracy and outstanding reliability. It can be used in a wide range of flow meter measurements including flow rate measurement of ultra-pure liquids, potable water, chemicals, raw sewage, reclaimed water, cooling water, river water, plant effluent.
Technical Specification
| Accuracy | +/-1% |
| Velocity range | 0 +-10m/s, Bi-directional measurement |
| Pipe size | DN15mm to DN6000mm |
| Temperature | 86 °F to 194 °F (30 °C to 90 °C) |
| Type of liquid | Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, etc. |
| Pipe material | Steel, stainless steel, cast iron, copper, PVC, aluminium, glass steel, etc. Liner is allowed. |
| Signal output | 1-way 4 ma to 20 mA output1 way OCT pulse output 1 way Relay output |
| Signal input | 3-way 4 mA to 20 mA input, achieve to heat measurement by connecting PT100 platinum resistor. |
| Interface | RS485, support MODBUS |
| Power supply | DC8, 36 V or AC 85 to 264 V |
