Overview

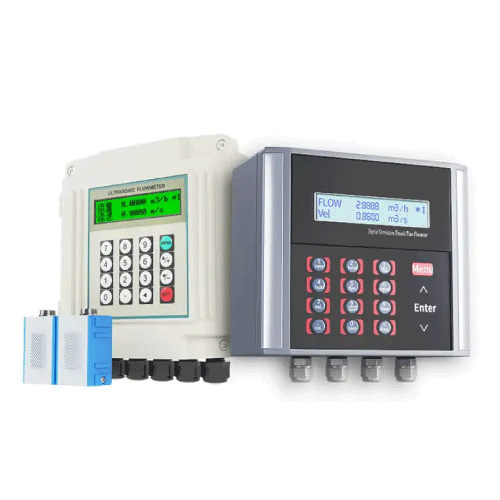

Enviro Test Construct Ultrasonic electromagnetic flow meters are suitable for testing equipment filter elements for water purifiers. It is installed in some residential areas and commonly used for testing water supply and monitoring. Suitable for measuring all kinds of pure liquids like pure water, heating water, tap water pipe and air conditioning circulates water.
Features
- It can be used without cutting pipes.
- Real-time measurement.
- Easy to operate.
- Suitable for all types of water like pure water, heating water, air condition circulate water.

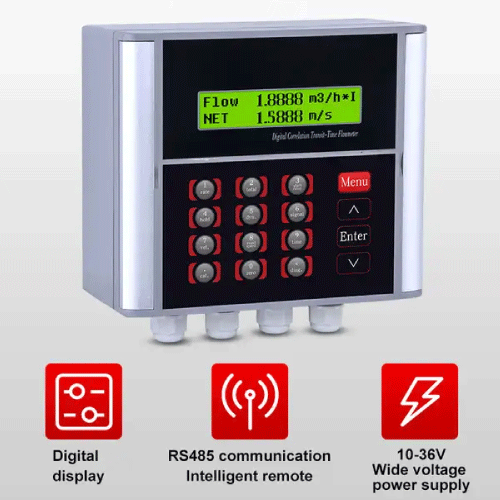

- Wall mounted flow meter.
Technical Specification
| Flow range | 0.03 to 16 ft/s (0.01 m/s to 5.0 m/s). |
| Accuracy | ± 1.0 %. |
| Pipe size | Clamp-on 1 in to 48 in (25 mm to 1200 mm). |
| Fluid | Water |
| Function specifications | |
| Communication interface | RS485 MODBUS. |
| Power supply | 10 to 36 VDC/1A. |
| Keypad | 16 (4×4) keys with tactile action. |
| Display | 20×2 lattice alphanumeric, back lit LCD. |
| Temperature | Transmitter: 14 °F to 122 °F (–10 ℃ to 50 ℃); Transducer: 32 °F to 176 °F (0 ℃ to 80 ℃). |
| Humidity | Up to 99% RH, non-condensing. |
| Physical specifications | |
| Transmitter | PC/ABS, IP65. |
| Transducer | Encapsulated design, IP68. |
