Overview

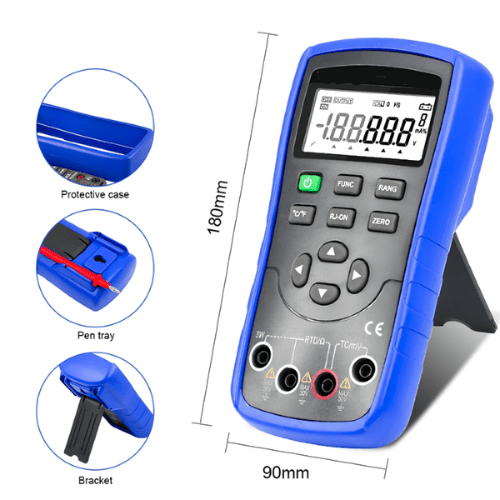

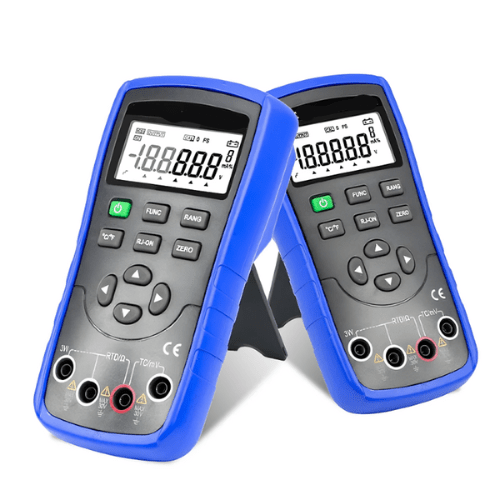

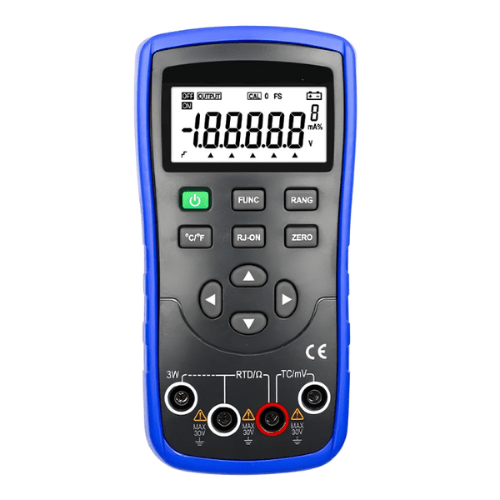

Enviro Test Construct temperature source multifunction process calibrator output with basic accuracy of 0.05%, 5 digits display for measured value. With resolution of 32.18 °F (0.1 ℃) the output unit can be converted between ℃ and ℉. DC V output provides an extra range of temperature output. The phase compensation of output makes it possible for instrument to drive a load with capacitance up to 2000 µf, matching for application with the filter of large capacitance at the input terminal.
Features
- Accessory user’s Manual, industrial testing lead CF-36 (clips for probe)
- safety complies with IEC1010 (safety standard issued by International Electrician Committee)
Technical Specifications

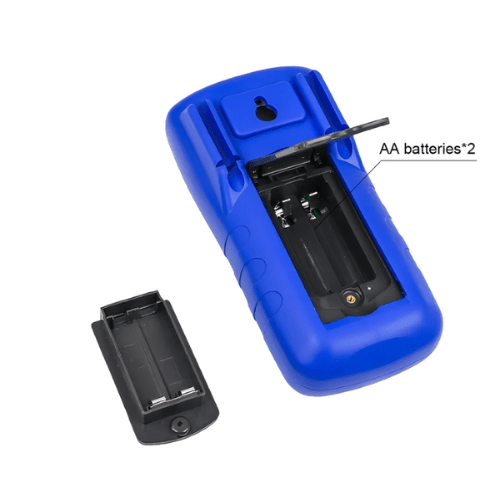

| Power | Two 1.5 V alkaline batteries |
| Power consumption | about 60 m or 3 V |
| Maximum allowed voltage | 30 V (within terminals or between terminal and earth ground) |
| Operation humidity range | ≤80%RH |
| Storage humidity range | ≤90%RH |
| Temperature coefficient | 0.1× (dedicated accuracy) % / ℃ 41 °F to 64.4 °F (5 ℃ to 18 ℃), 82.4 °F to 104 °F (28 ℃ to 40 ℃) |
| Storage temperature range | ≤14 °F to 131 °F (≤-10 °C to 55 °C) |
| Operation temperature range | 32 °F to 122 °F (0 °C to 50 °C) |
| Measurement | 7.09 in x 3.54 in x 1.85 in (180 mm ×90 mm ×47 mm) (L x W x D) (with protector) |
| Weight | About 1.10 lb (500 g) |
