Overview

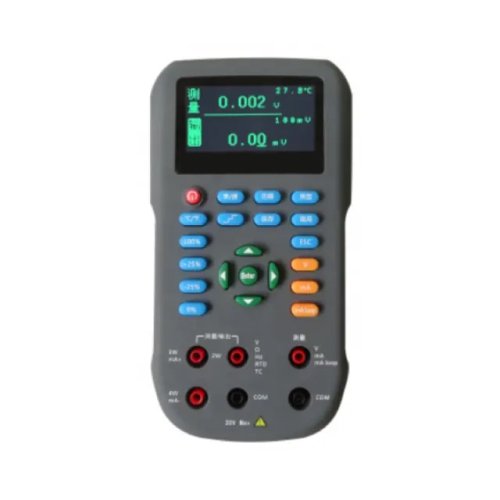

Enviro Test Construct Handheld Multifunction Process Signal Calibrator is a handheld thermal instrument and process signal measurement calibration instrument, with an accuracy of class 0.05, which can calibrate class 0.1 and below industrial sensors, transmitters, recorders and other thermal process instruments.
Features
- DC voltage Output/Measurement: 10 mV to 11 mV
- DC current output/measurement: 0.2 mA to 24 mA
- DC Resistance Simulation: 4 Ω to 4.8 kΩ
- DC Resistance Measurement (2-wire/4-wire): 4 Ω to 4.4 kΩ
- 6 types of Thermal Resistance (RTD) simulation and measurement
Technical Specifications
| DCV Output/Measurement | 10 mV to 11 V | |
| DCI Output/Measurement | 0.2 mA to 24 mA | |
| DC Resistance Simulation | 4 Ω to 4.8 kΩ | |
| DC Resistance Measurement | 4 Ω to 4.4 kΩ | |
| Thermal Resistance (RTD) | 6 types | |
| Thermocouples (TC) | 8 types | |
| Power Supply | 4 x 1.5V AA batteries; | |
| Maximum Power Consumption | 10 VA | |
| Temperature Performance | Working temperature: -4 °F to 122 °F (-20 °C to 50 °C); Storage temperature: -4 °F to 158 °F ( -20 °C to70 °C) | |
| Humidity Performance | Operating humidity: < 80% at 86 °F (30 °C), < 70% at 104 °F (40 °C) < 40% at 122 °F (50 °C) Storage humidity: (20% RH to 80% RH), no condensation | |
| Altitude | < 9842.52 feet (3000 m) | |
| weight | Approx 1.10 lb (500 g) | |
| Size | 4.72 in × 2.36 in × 8.66 in (120 mm × 60 mm × 220 mm) | |
