Features

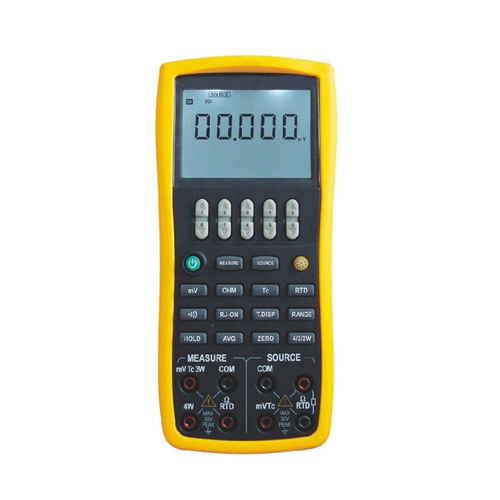

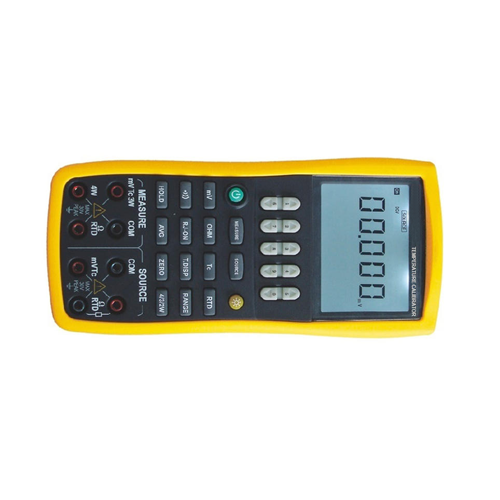

- Temperature calibrator
- Circuit on-off measurement, with backlight
- High Accuracy 0.02%
- Output Display with 6 digits
- Auto power off
- Internal temperature compensation sensor
Technical Specifications
| Source. Specification | Range | Resolution | Basic Accuracy |
| DC mV | -10.000 mV to 100.000mV | 1 uA | 0.02% to +0.01% |
| DC V | -0.1 to 1V | 10 uA | 0.02% to +0.01% |
| Resistance | 0 KΩ to 4 KΩ | 0.01 Ω | 0.02% to +0.02% |
| Thermocouple | 10 types (R / S / K / E / J / T / B / N / L / U) | 32.72 ℉ (0.4 ℃) | 32.72 ℉ (0.4 ℃) |
| RTD | 6 types (Pt 100 / Pt 200 / Pt 500 / Pt 1000 / Cu 10 / Cu 50) | 32.36 ℉ (0.2 ℃) | 32.36 ℉ (0.2 ℃) |
| DC mV | -5 mV to 550 mV | 1 uV | 0.02% to +0.01% |
| Resistance | 0 KΩ to 5.5KΩ | 0.01 Ω | 0.05% to +0.02% |
| Thermocouple | 10 types (R / S / K / E / J / T / B / N / L / U) | 32.18 ℉ (0.1 ℃) | 33.26 ℉ (0.7 ℃) |
| RTD | 6 types (Pt 100 / Pt 200 / Pt 500 / Pt 1000 / Cu 10 / Cu 50) | 32.18 ℉ (0.1 ℃) | 32.9 ℉ (0.5 ℃) |
| Continuity | 0 Ω to 500 Ω | 0.01 Ω | ≤50 Ω Sound |
| Communication function | RS 232, remote control instrument by the device driver software | ||
| Data Analysis | Data hold, zero, average | ||
| Safety Class | EN 61010-1:2001 | ||
| Insulation | DC 500 V / 50 MΩ | ||
| EMC | EN 61326-1:2006 | ||
| Display | Double display, Large LCD | ||
| Power supply | 4 V × 1.5 V AAA alkaline battery | ||
| Product Size | 8.07 in × 3.74 in × 1.65 in (205 mm × 95 mm × 42 mm) | ||
| Product Weight | About 1.1 lb (500 g) | ||
