Overview

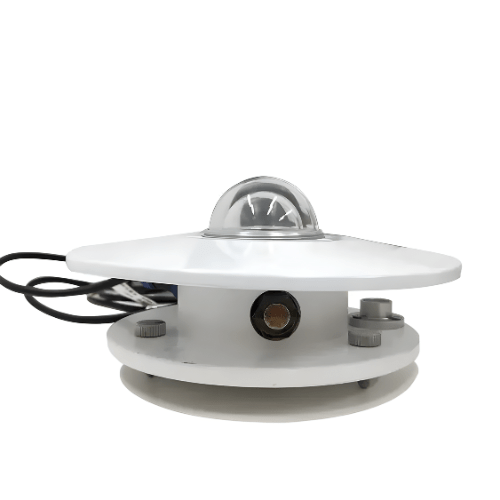

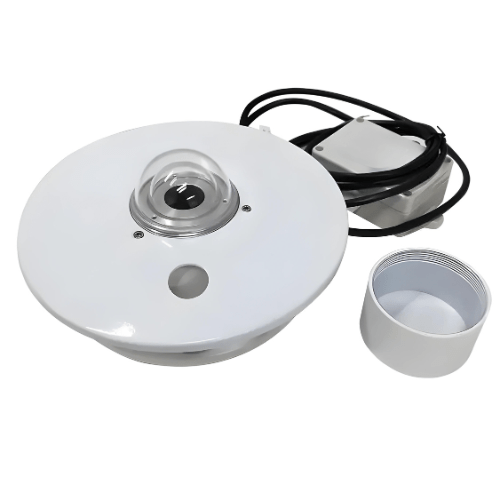

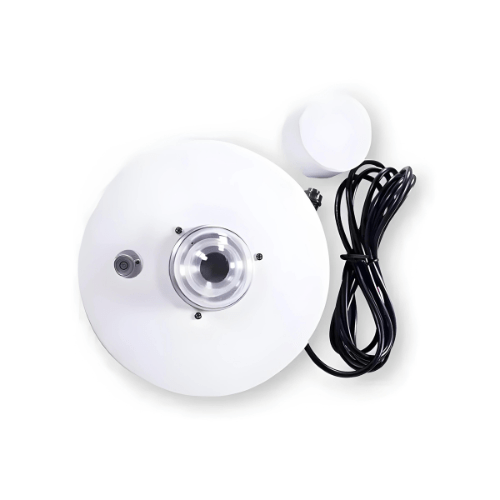

Enviro Test Construct solar measuring radiation sensor pyranometer is produced based on thermopile principle; sensing elements are made by winding – plated thermopiles with multi-contacts. Its surface is coated by black coating with high absorption rate. Hot contacts on the sensors surface, while the cold junction is located within the body, temperature difference between the hot and cold junction generates electromotive force, the thermoelectric effect is proportional to the solar radiation.
Features
- Conform to the WMO standard
- Suitable for harsh environment
- With horizontal bubble
- High sensitivity
- Double transmission glass
- Easy installation
Technical Specifications
| Spectral Range | 300 nm to 3200 nm |
| Supply | 5 V, 12 V to 24 V DC |
| Range | 0 W / m2 to 2000 W / m2 |
| Output | 0 mV to 20 mV, 0 V to 5 V, 4 mA to 20 mA, RS 485 |
| Sensitivity | 7 μVW-1m2 to 14 μVW-1m2 |
| Internal Resistance | 350 Ω |
| Non-Linearity | < ± 2% |
| Measuring Angle | 2 π solid angle |
| Response Time | ≤ 35 sec (99%) |
| Stability | ± 2% / year |
| Cosine Correction | ≤ ± 7% (Solar elevation angle = 10 °) |
| Pack | Aluminum alloy instrument box |
| Ingress Protection | IP 65 |
| Storage Condition | 50 °F to 140 °F (10 °C to 60 °C) at 20% to 90% RH |
| Temperature Effect | ± 2% 14 °F to 104 °F (-10 °C to +40 °C) |
| Operating Temperature | -40 °F to 176 °F (-40 °C to +80 °C) |

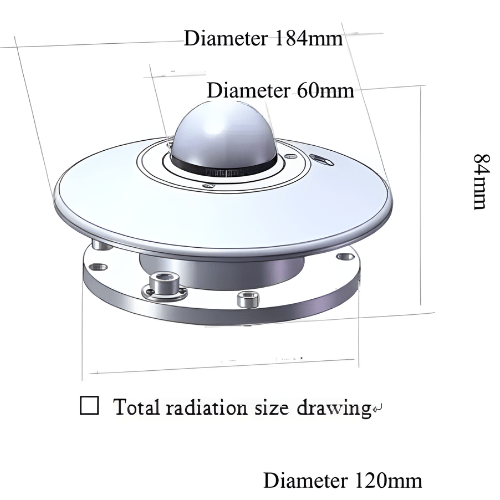

| Dimension | 6.50 in x 4.72 in (165 mm x 120 mm) |
| Weight | 5.51 lb (2.5 Kg) |
