Overview

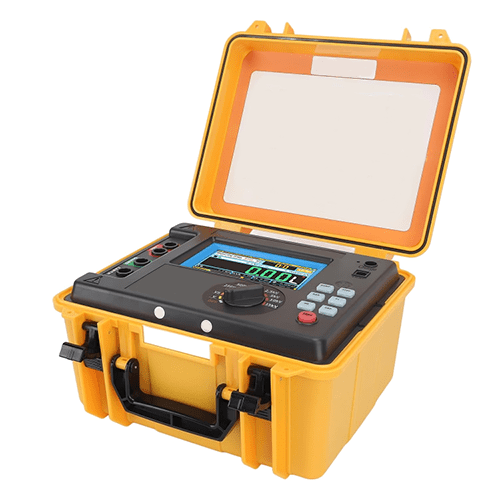

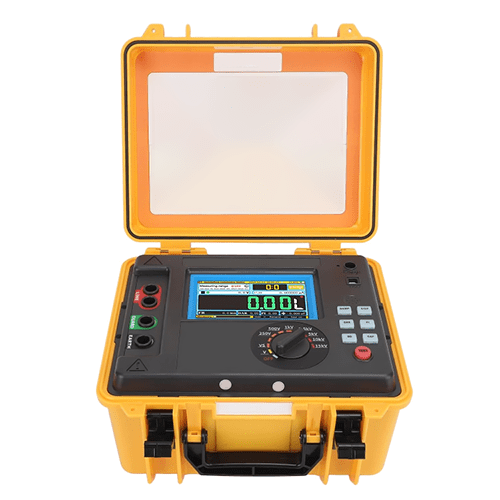

Enviro Test Construct resistance moisture meter is an advanced tool designed for testing insulation resistance parameters in high-capacity, high-voltage environments, including substations and transmission lines. Featuring a true color touch screen, it consolidates all test data and battery status, ensuring user-friendly operation. With a quick discharge function and automatic voltage monitoring, it prioritizes safety, halting testing if voltages exceed 36V. Equipped with a rechargeable lithium battery pack, it records test duration, stores results, and offers easy historical data access. It’s robust build with an IP65 rating shields against moisture, dust, and collisions during transportation. Offering various tests, including insulation resistance, polarization index, absorption ratio, and more, it serves as a crucial instrument in multiple industries such as power, telecommunications, and industrial enterprises’ power supply departments.
Features
- Insulation resistance range extends up to 30 TΩ (15 kV), 20 T (10 kV), and 10 TΩ (5 kV).
- Output rated voltage spans across 7 ranges (250 V, 500 V, 1 kV, 2.5 kV, 5 kV, 10 kV, 15 kV).
- Maximums short-circuit current: 7 mA.
- Offers tests for insulation resistance (IR), polarization index (PI), absorption ratio (DAR).
- Modes include Ramp test (RAMP), Filter test (FR), and Capacitance test (uF).
- The voltage monitor function automatically observes the charged voltage of tested objects.
- Features a test timer to record test durations automatically.
- Automatic discharge function swiftly releases the test object’s charge without an external circuit post-test.
- Auto shutdowns feature integrated.

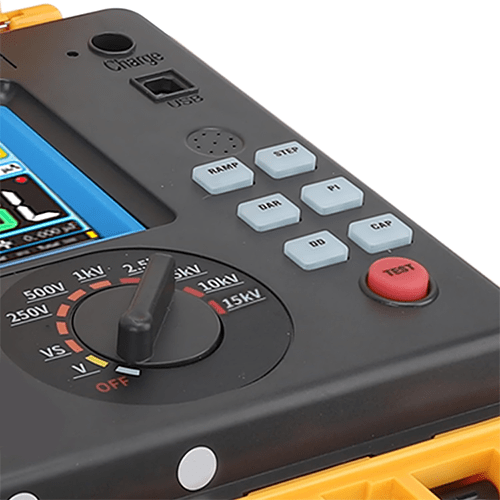

- Incorporates a large touch color screen for user interaction.

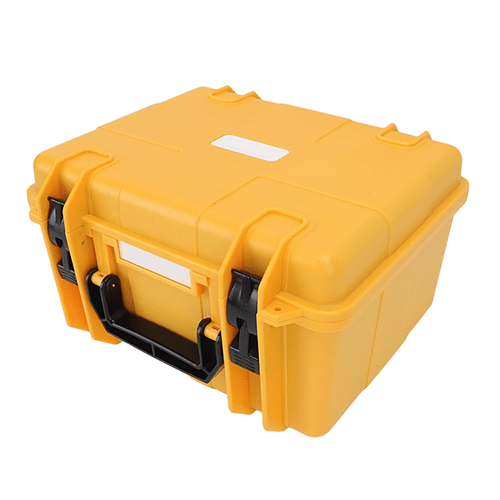

- Boasts a robust double-layer shell structure with IP65 protection grade for durability.
- Fitted with a high-capacity rechargeable lithium battery pack.
- Storage capacity allows for automatic storage of 1000 groups of real-time test data with date, time, and test duration.
- Equipped with a USB interface for data upload, facilitating statistical analysis on a computer.
Technical Specifications
| Function | Insulation resistance measurement (IR); polarization index measurement (PI); absorption ratio (DAR); ramp test mode (RAMP); filter function (10 s, 20 s, 30 s, 40 s); voltage measurement (V); capacitance measurement (uF); current measurement (nA) |
| Power Supply | Rechargeable lithium battery 6.2 Ah |
| Rated Voltage | 250 V 500 V 1 kV 2.5 kV 5 kV 10 kV 15 kV |
| Output Voltage Accuracy | (5% to 10%) ± 10V |
| Insulation Resistance Test Range | 0.50 MΩ to 30 TΩ |
| Output Short Circuit Current | ≥ 7 mA |
| Polarization Index Test | Yes |
| Absorption Ratio Test | Yes |
| Ramp Test Mode | Test in steps of 10 % of the preset voltage until the preset voltage. |
| Filter Test Mode | 10 s, 20 s, 30 s, 40 s four selections. |
| Voltage Test | Range: AC/DC: 0V to 1000V; Accuracy: ± 5 % rdg ± 3 V |
| Capacitance Test | Range: 10 nF to 25 uF; Accuracy: ± 10 % rdg ± 10 nF |
| Current Test | Range: 0.01 nA to 7 mA; Accuracy: ± 5 % rdg ± 0.5 nA |
| Voltage Monitor | Monitor the voltage of the tested object, and monitor discharge status after test, forbidden to test when voltage exceeds 36 V, protect instrument and operator. |
| Test Timer | Automatic record test time, timing range: 0 s to 9999 s |
| Storage Function | Automatically store the test data with test date and time, total of 1000 groups |
| Upload Function | Upload the stored data to computer via USB communication cable. |
| Battery Power Display | With battery power display, when battery voltage low will remind to charge the battery. |
| Automatic Shutdown | After 15 minutes start-up will shut down automatically without any operation. |

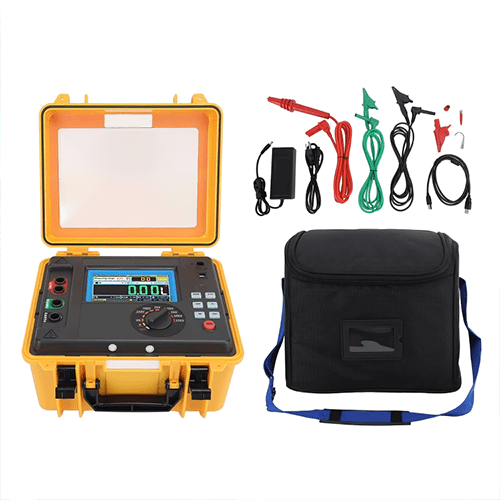

| Test Wires | Red color high voltage test wire 1 pc (with an alligator clip and hook), green color test wire 1 pc, black color test wire 1 pc |
| Protection Level | Close the case IP65, open the case IP40. |
| Insulation Resistance | 50MΩ (1000 V) (between the test circuit and shell) |
| Withstand Voltage | AC 3kV 50Hz 1 min (between the test circuit and shell) |
| Working Environment | – 4 °F to 122 °F (- 20 °C to 50 °C); 80 % RH |
| Store Environment | 77 °F to 149 °F (- 25 °C to 65 °C); 80 % RH |
| Dimension | 11.02 in × 10.24 in × 6.3 in (280 mm × 260 mm × 160 mm) |
| Weight | 10.8 lb (4900 g) (include the battery) |
