Overview

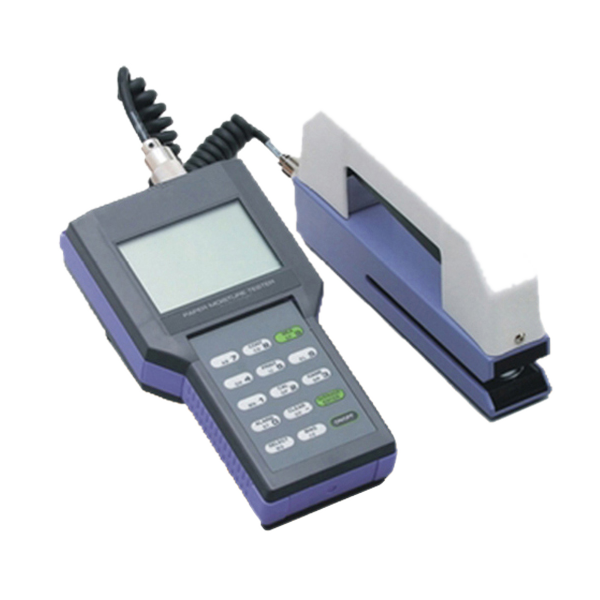

Enviro Test Construct Moisture Meter for Paper measures moisture in all kind of paper with high precision, and supports JIS P8127 standard for moisture content.
Key Features
- Have three different head types (K-300 series)
- Have optional accessories
- Measured by electrical impedance
- Used to measure water content in all kinds of paper
Technical Specifications
| Measurement methods | Electrical impedance type |
| Measurement standard | JIS P8127 (Photocopy paper, cardboard) |
| Measurement range (HK-300-1) | Photocopy paper: 4-15%, Cardboard: 6-20%. |
| Measurement range (HK-300-2) | Photocopy paper: 4-25%, Corrugated paper: 6-23%, Kraft paper: 5-24% |
| Measurement range (HK-300-3) | Photocopy paper: 2~10%, Corrugated paper: 5~15%, Kraft paper: 2~10% |
| Measurement accuracy | Standard error of 0.4% (water content below 15%) |
| Volume (WxDxH) | 4.3×8.2×2.0 in (110x210x50 mm) |
| Power | 1.5Vx6 (approx. 0.45W) |
| Weight | 1.1 lbs. (0.5 kg) |
| Display mode | Minimum read value of LCD is 0.1% |
| Optical accessories | Special printer VZ-330Printer transmission line VZC-26 |
