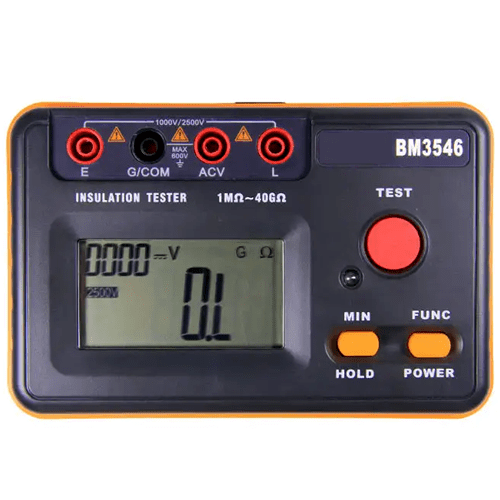

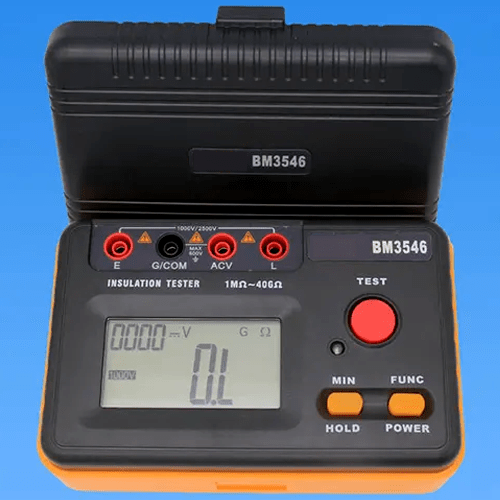

Name: Enviro Test Construct Resistance Megohmmeter -
SKU: ETCOHM-242

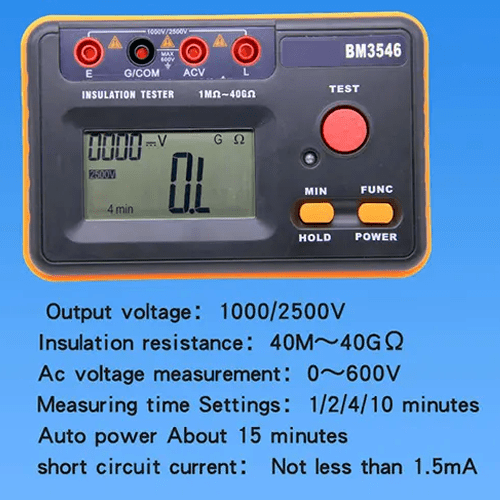

Technical Specifications

Rated voltage	500 V or 1000 V 1000 V or 2500 V
Rated voltage	500 V or 1000 V 1000 V or 2500 V
Accuracy	± 10 %
Display range	500 V 500 K to 4 GΩ 1000 V 1 M to 40 GΩ
Accuracy	± (3 % +5 %）
Voltage display	Insulation resistance and measure voltage
Measuring time	1 minute or 2 minutes or 4 minutes or 10 minutes
Short circuit current	≥1 mA
Output Voltage	500 V or 1000 V
Auto power OFF	About 10 minutes
Insulation Resistance	0.5 Ω to 40 GΩ
AC Voltage Measurement	0 V to 600 V
Greatest display	3999 digits
Power	AA 1.5 V × 6 V

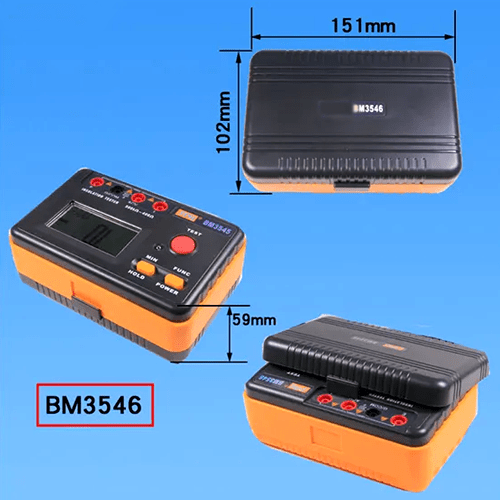

Size	5.9 in x 4 in x 2.3 in (151 mm × 102 mm × 59 mm)
Weight	About 1.4 lb (650 g)
