Overview

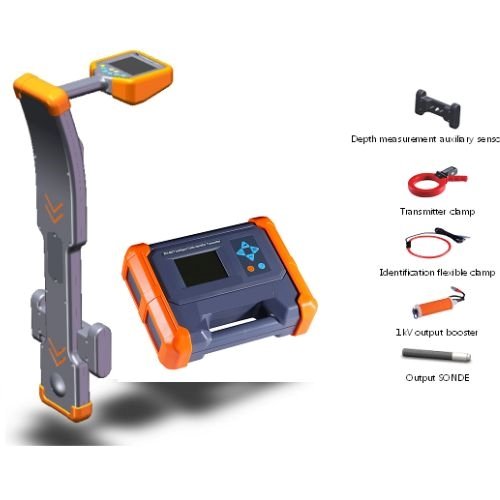

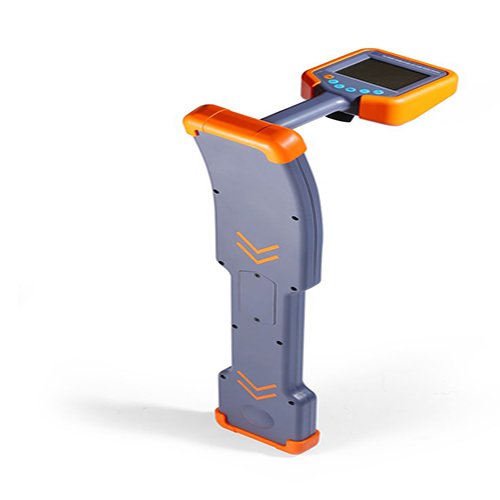

Enviro Test Construct product is a high performance underground metallic pipe locating system. It consists of a transmitter and a receiver, which can be used to do route tracing, pipe exploration and depth measurement of the underground cables and metallic pipes. It can also be used to identify target cable from a bunch of cables, locate the pipe insulation damage and part type cable fault.
Features

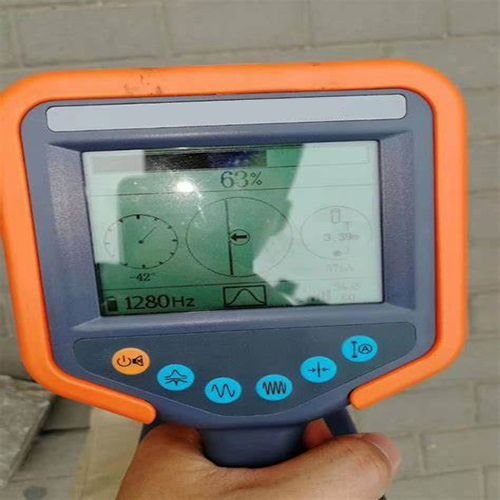

- Compass display: to display pipe position directly
- Left/right arrow indication: use the left/right arrow to indicate the pipe position when route tracing
- Real-time depth measure and current measure
- History curve to display the signal variation directly
- Multiple signal output mode: Direct connection output, Clamp Coupling input, Radiation output
- Big capacity Li-ion batteries series, support auto power off when low battery or long time no operation
- Solid case and light weight easy to carry
Technical Specification
| output | Direct connection output |
| Output frequency | 640 Hz |
| Output power | 10 W |
| Connection voltage | 150 Vpp |
| HMI | 128 x 64 LCD |
| Power supply | 4 built in 18650 li-ion batteries |
| volume | 10.63 in x 8.66 in x 3.34 in (270 mm x 220 mm x 85 mm) |
| weight | 4.85 lb (2.2 Kg) |
| Charger input | AC 100 to 240 V |
