Overview

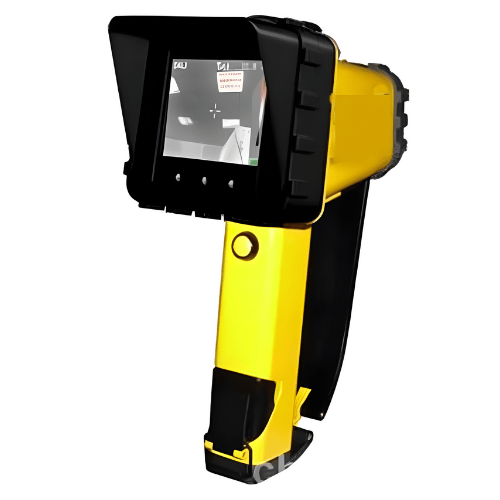

Enviro Test Construct portable infrared thermal thermometer the use of infrared detectors optical imaging objective lens to accept the target infrared radiation energy distribution pattern reflected to the photosensitive element on the infrared detector, so as to obtain infrared thermal image, it is corresponds to the surface of the heat distribution field in other words, make the invisible infrared energy of the object into a visible thermal image and the different colors above the thermal image represent the different temperatures of the measured object
Features
- Infrared lens to receive and converge measured object emission
- Convert heat radiation model into electrical signals
- Electronic components processing the electrical signal
- Display components into a visible light image
- Software to deal with the collected temperature data
Technical Specifications
| Array format | 160 × 120 |
| Frame frequency | 50 Hz |
| Power source | ≤ 2 hours |
| Encapsulation | IP 67 |
| Drop test | 1 m |
| Temperature range | -4 °F to 1112 °F (-20 ℃ to 600 ℃) |
| Dimension | 7.48 in × 5.03 in × 10.74 in (190 mm × 128 mm × 273 mm) |
| Weight | 2.86 lb (1.3 kg) |
