| Horizontal System | |
| Real-time sampling rate | 1 GSa/s |
| Equivalent sampling rate | 5 GSa/s |
| Time base range | 1 ns/Div to 10 s/Div (in) |
| Storage depth (dual channel) | 8 Mpts |
| Storage depth (single channel) | 16 Mpts |
| Vertical System | |
| Bandwidth | 150 MHz |
| Input coupling | DC or AC |
| Input impedance | 1 MΩ//16pF |
| Vertical sensitivity | 10 mV/Div to 5 V/Div |
| Vertical resolution | 8 bits |
| Input withstand voltage range | peaks ≤ 250 V |
| Trigger System | |
| Trigger mode | Automatic Normal (ch0 and ch1) |
| Trigger position | 0 % to 100 % sampling depth |
| Hold-off range | 0 s to 1 s |
| Trigger Type | Edge (rising or falling) |
| Waveform Measurement | |
| Cursor | Y-axis and X-axis cursor |
| Manual measurement | width/frequency/period/voltage amplitude |
| Automatic measurement | frequency/period/+duty cycle/-duty cycle/+pulse number rising edge/falling edge/+pulse width/-pulse width/burst pulse width/amplitude/high level/low level /rms/average/peak-to-peak/maximum/minimum/+overshoot/-overshoot |
| Waveform Display | |
| Time-domain waveforms | Real-time waveform acquired in a single shot (high frame rate hardware processing engine) |

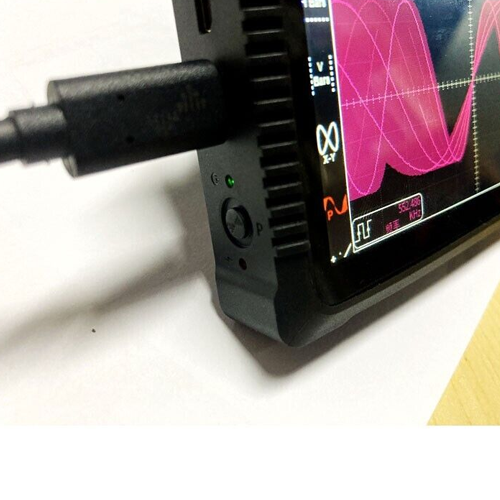

| X-Y mode | Lissajous figure |
| Signal Generation | |
| Waveform type | sine/square/triangle/sawtooth wave |
| Waveform frequency | 0 KHz to 100 KHz |
| Square wave duty cycle | 10% to 90% |
| Waveform amplitude | 0 V to 3 V (min Vpp=0.5 V) |
| Extended Interface | |
| Mini-HDMI | Extends acquisition based on other sensors |
| BNC | Extended Current / Differential Probes |
