Overview
Enviro Test Construct plant canopy radiation meter can be used to measure the sunlight interception by plant canopy, investigate canopy luminous energy, study the relationship between luminous energy utilization and crop growth, yield, and quality. As an analyzer appropriate to the measurement and record of PAR at the waveband of 400nm-700nm (unit: μmols-1m-2), this device has been widely used in agricultural production and scientific research.
Features
- This plant canopy analyzer is a data collector-detector level integrated device
- There are 25 independent sensors arranged at a distance of 1 cm each
- The menu is simple to operate
- The device is compact and convenient to carry
- The storage is a common SD card that features large capacity and convenient data management
- Both auto and manual measurement modes are supported
- The maximum time of auto measurement is 99
- In the manual measurement mode, the data is collected manually
Technical Specifications
| Range Of Measurement | 0 μmol m-2s-1 to 2700 μmol m-2s-1 |
| Resolution | 1 μmol m-2s-1 |
| Response Time | 10 μs |
| Time Interval For Auto Data Acquisition | 1 min to 99 min |
| Times Of Auto Data Acquisition | 1 to 99 |
| Storage Capacity | 2 GB (standard SD card) |

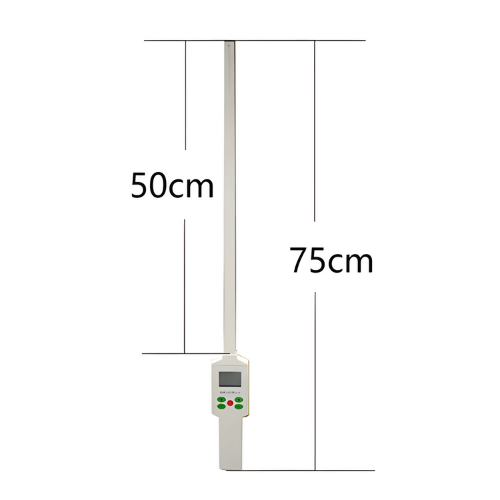

| Total Length | 29.53 in (750 mm) |
| Sensor Lever | 19.68 in (500 mm) |
| Number Of Sensors | 25 (standard) |
| Power | 2 × AA batteries |
| Operating Environment | 32°F to 140°F(0°C to 60°C); 100%RH |
