Overview

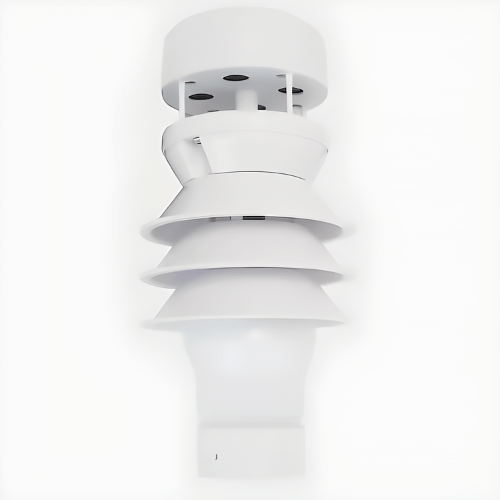

Enviro Test Construct micro automatic radiation meter is a civil integrated meteorological station independently developed by our company, which can measure multiple meteorological parameters. It can simultaneously measure atmospheric temperature, atmospheric humidity, wind speed, wind direction, air pressure, rainfall, radiation, illuminance, UV radiation, PM2.5 and PM10 and other meteorological elements.
Features
- Solid and durable overall design, easy to install, all-weather measurement
- No moving parts, maintenance free for the whole system
- Modbus communication protocol
- Electronic compass, GPS or Beidou global positioning module can be added
- Internal heating device ensures normal operation in severe cold climate
- Integrated automatic weather station with PM2.5 and PM10 dust particle concentration detection
Specifications
| Wind speed | Range: 0 m/s to 40 m/s Accuracy: ± 5 % Resolution: 0.1 |
| Wind direction | Range: 0° to 359° Accuracy: ± 3° Resolution: 1° |
| Temperature | Range: -40 °F to 176 °F (- 40 ℃ to + 80 ℃) Accuracy: ± 32.9 °F (0.5℃) Resolution: 32.18 °F (0.1 ℃) |
| Humidity | Range: 0 % to 100 % Accuracy: ± 5 ％ Resolution: 1 |
| Atmospheric pressure | Range: 150 hPa to 1100 hPa Accuracy: ± 1 Resolution: 0.1 hPa |
| Rainfall | Range: 0 mm/hr to 200 mm/hr Accuracy: ± 5 ％ Resolution: 0.01 mm |
| Altitude | Range: -500 m to 9000 m Accuracy: ± 5 ％ Resolution: 1 m |
| Radiation | Range: 0 W/m2 to 2000 W/m2 Accuracy: ± 5 ％ Resolution: 0.1 W/m2 |
| Illuminance | Range: 0 lux to 200000 lux Accuracy: ±5％ Resolution: 0.1 lux |
| UV radiation | Range: 0 W/m2 to 2000 W/m2 Accuracy: ± 5 ％ Resolution: 0.1 W/m2 |
| PM1.0/PM2.5/PM10 (dust) | Range: 0 μg/m3 to 500 μg/m3 Accuracy: ± 10 ％ Resolution: 1 μg/m3 |
| Digital output | RS232, RS485, SDI-12 |
| Power supply | VDC: 7 V to 30 V |
| IP protection | IP65 |
| Baut rate | 4800 to 19200 |
| Communication | ModBus，NMEA-0183，ASCII |
| Size | Φ3.31 in x 4.72 in x 11.73 in (84 mm × 120 mm x 298 mm) / 0.84 lb (0.38 kg) |
| Material | Black/ White/ ASA |
