Overview

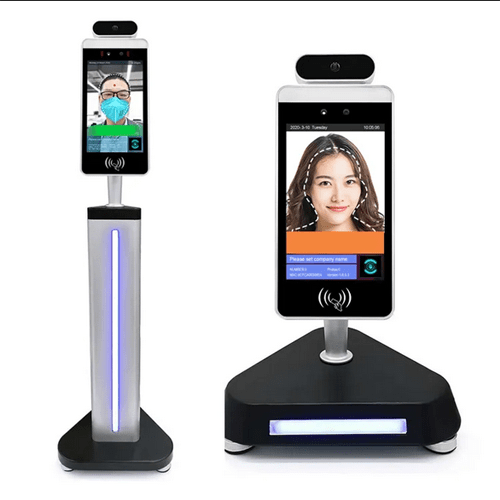

Enviro Test Construct intelligent infrared medical electronic thermometer temperature measurement mask recognition detection, it adopts Rock chip RK3288 high-performance hardware platform, industrial grade binocular camera and face recognition, as well as infrared thermal imaging technology, and supports card reading, fingerprint input and other functions, which can be applied to the temperature security and the fast physical examination gate channel to achieve safe and efficient access control.
Features
- No streaking and delay
- Binocular live anti-counterfeiting function
- Anti-deception such as photos and videos
- Support mask recognition detection
- Automatic recognition
- Voice reminder for non-wearing masks
- Industrial grade binocular width dynamic camera, infrared
- RGB dual fill light, low light recognition worry-free.
- High-performance hardware platform
Technical Specifications
| CPU | RK 3288 Quad core, RAM 2 G, the maximum main frequency is 1.8 GHz. |
| ARM | DDR3 2 GB |
| Internal Storage | EMMC 8 GB |
| Operating System | Android 7.1 |
| OSD Language | Support multi language |
| Infrared Temperature Sensor | Support human body temperature detection with accuracy >99% |
| Panel Model | 8 in IPS LCD display |
| Max Resolution | 800 x 1280 |
| Camera | Pixel 200 W binocular width dynamic |
| Type RGB + IR Infrared | |
| Aperture 0.07 in (2.0 MM) | |
| Focal length 0.5 m to 1.5 m (50 cm to 150 cm) | |
| White Balance Automatic | |
| Function Module Interface | Fill-in light IR, LED Fill light |
| Network Module Support Cable, WIFI | |
| Speaker | Double 8 o 1w |
| USB Interfaces | 1 USB OTG, 1 USB HOST standard A port |
| Conventional Performance of Face Recognition | Local Offline Use Local 30,000 Face Database |
| Face detection; support simultaneous detection and tracking of 5 people | |
| 1: N Face Recognition: Supports one-thousandth of the error rate. 96% Pass Rate | |
| 11 Support the optional swipe card module, the ID card module can achieve 1:1 face comparison. | |
| Stranger Detection: Support | |
| Recognition Distance Recognition Support | |
| Remote Upgrade of Equipment Support | |
| Equipment Interface Equipment Management, Authority Management, Personnel/Photo management, record query, etc. | |
| Infrared Thermal Imaging Temperature Detection | Temperature detection distance 100 cm (1 m), optimal distance: 50 cm (0.5 m) |
| Measurement range 50 °F to 107.6 °F (10 ºC to 42 ºC) | |
| Thermal imaging field of view 32 X 32 ºC | |
| Direct release of normal visitor temperature Support | |
| Over-temperature alarm Support (body temperature alarm value can be set) | |
| Power Input | DC12 V 5 A (±10%) |
| Consumption | 13.5 W (Max) |
| Protection Level | IP65, Certain outdoor dustproof and waterproof functions |
| Installation Mode | Installation of wall mounting bracket, bracket of gate and fixed tripod bracket |
| Orking Temperature | 14 °F to 140 °F (-10 ºC to 60 ºC) |
| Storage Temperature | -4 °F to 140 °F (-20 ºC to 60 ºC) |
| Overall Dimension | 9.38 in x 5.03 in x 0.84 in (238.24 mm x 128 mm x 21.48 mm) |
| Weight | 3.19 lb (1.45 kg) (Tripod bracket NOT included) |
