Overview

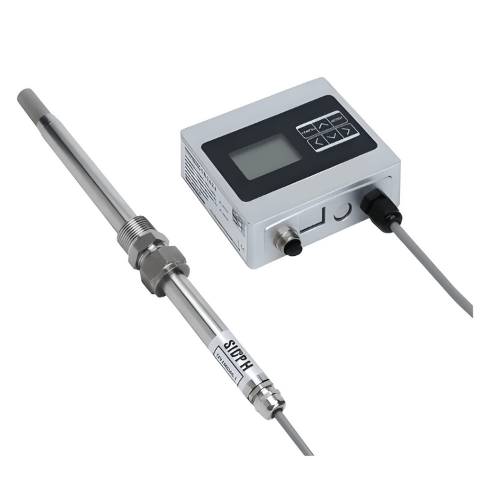

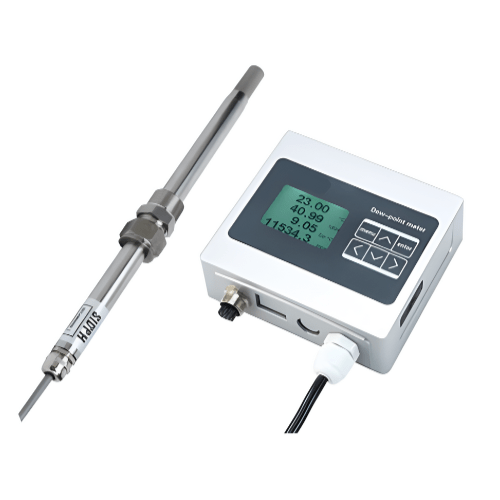

The Enviro Test Construct industrial thermo-hygrometer is designed for industrial applications where precise temperature and humidity measurements are essential. It is particularly well-suited for use in the power industry, air purification and clean rooms, compressed air drying, pharmaceutical processing, lithium battery production, plastic substrate drying, and other environments that require very low humidity levels.
Features
- Corrosion-resistant design
- Cost-effective calibration
- Wide measurement range
- Versatile data presentation and output
Technical Specifications
| Operating Humidity Range | 0 % to 100 % RH (Tolerance ±0.8 % RH) |
| Working Dew Point Range | -49 °F to 185 °F (-45 °C to 85°C) (Tolerance ±35.6 °F (±2 °C) |
| Repeatability | <0.5 % RH, < 32.18 °F (0.1 °C) |
| Annual Drift | <1 % RH, < 32.18 °F (0.1 °C) |
| Response Time | T63 3 sec to 12 sec |
| Probe Pressure | 20 bar |
| Probe Type | Stainless steel |
| Probe Class | IP65 (NEMA4) |
| Probe Cable | 6.56 foot (2 meters) |
| Standard Threaded Interface | G1 316 stainless steel or G2 316 stainless steel |
| High Temperature Thread Interface | Z G 4 stainless steel or Z G 3 stainless steel |
| Power Supply | 10 V DC to 36 V DC |
| Power Consumption | <10 W |
| Auxiliary Function | Range arbitrarily set, zero correction |
