Overview

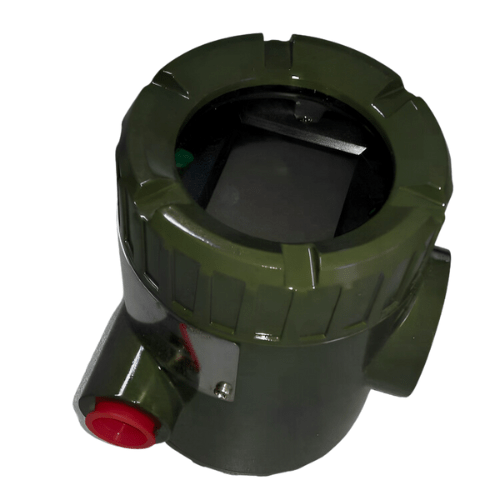

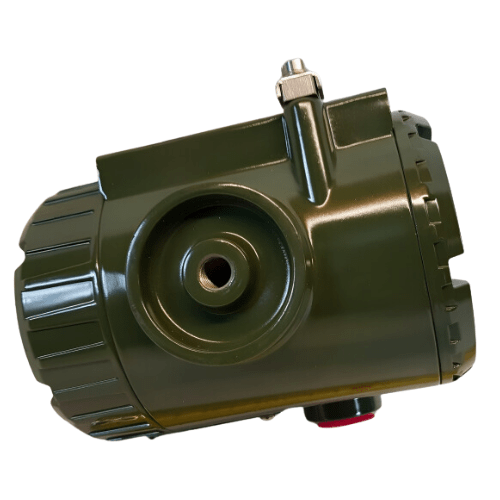

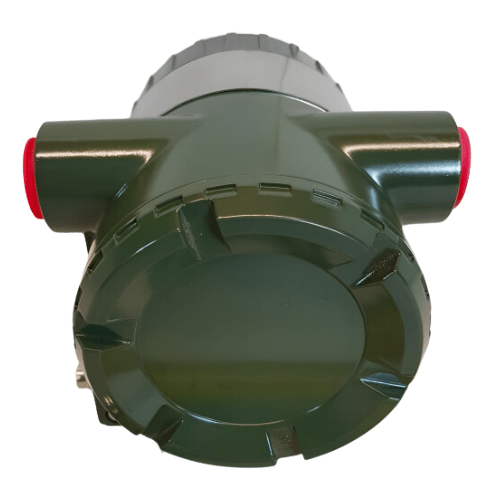

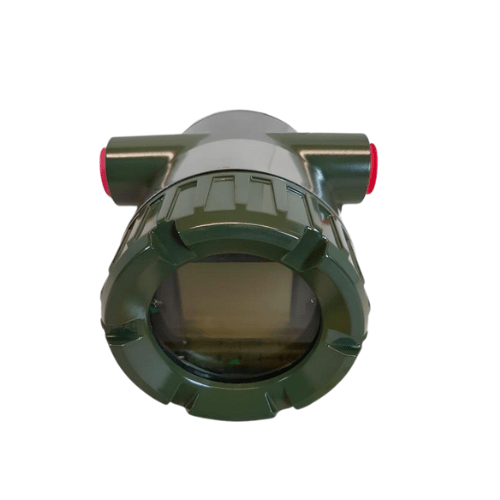

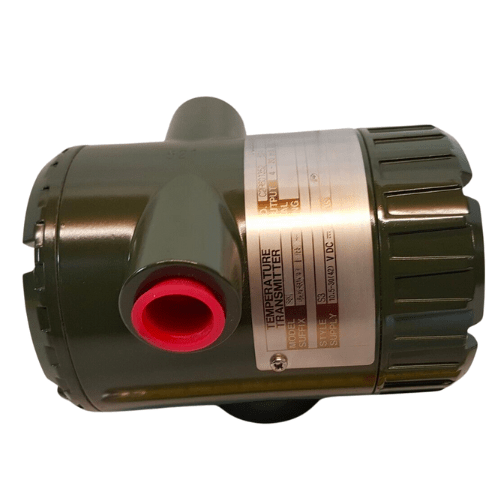

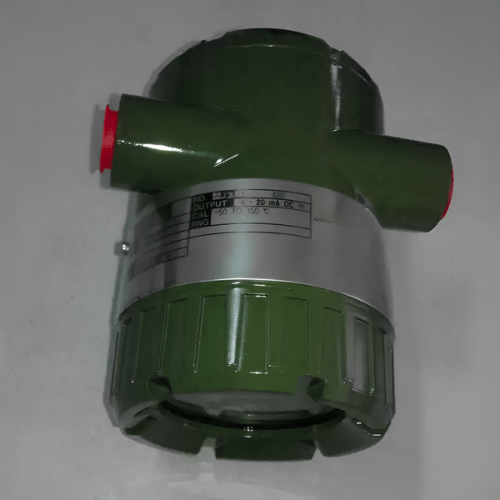

Enviro Test Construct high precision temperature is a high-performance field-mount temperature transmitter that accepts a single sensor input. This input can be from a RTD, thermocouple, ohm, or DC millivolt. It converts the sensor input to a 4 mA to 20 mA DC analog signal.
Features
- Dual-compartment field-mount housing
- TUV Nord SIL 2 or 3 Certified
- 20 Input Types
Technical Specifications
| Accuracy (typical) | YTA110 ±0.1% of span |
| YTA 310 or 320 ±0.05% of span | |
| Cold junction Compensation Accuracy | (For T or C only) |
| ±0.9 °F (0.5 °C) | |
| Power Supply Effect | ±0.005% of calibration span per volt |
| Ambient Temperature Effect | ±0.1% or 50 °F (10 °C) (YTA110) |
| Input Signal | YTA110 or YTA310 single input, YTA320 dual input |
| Input type is selectable thermocouples, 2-, 3-, and 4-wire RTDs, ohm and DC millivolt | |
| Output | Two wire 4 mA DC to 20 mA DC or FOUNDATION fieldbus signal (YTA320) |
| Supply Voltage | BRAIN and HART 10.5 V DC to 42 V DC |
| (10.5 V DC to 30 V DC for Intrinsically safe type) | |
| Fieldbus 9 V DC to 32 V DC | |
| (9 V DC to 24 V DC for Entity and 9 V DC to 17.5 V DC for FISCO) | |
| Mounting | Optional mounting bracket can be used either for two-inch pipe or flat panel mounting. |
| Degrees of Protection | IP 66, IP 67 and NEMA 4X |
| Ambient Temperature | Option code may affect limits |
| -40 °F to 185 °F (-40 °C to 85 °C) | |
| -22 °F to 176 °F (-30 °C to 80 °C) with integral indicator | |
| Weight | 2.6 lb (1.2 kg) without integral indicator and mounting bracket. Integral indicator weighs 0.4 lb (200 g) |
