Overview

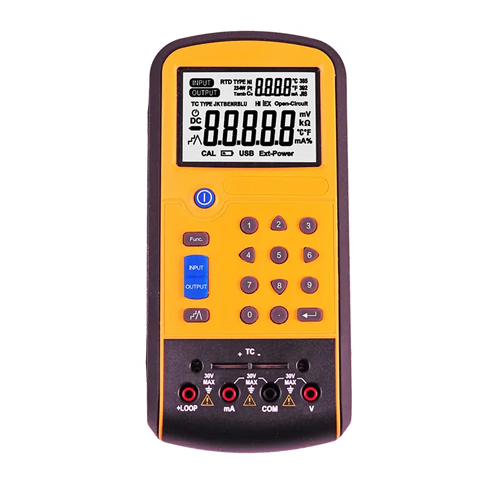

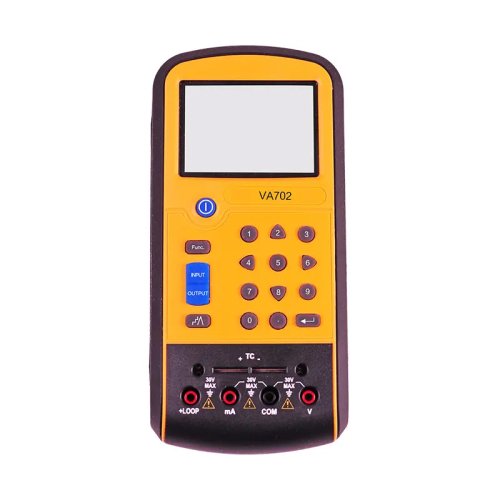

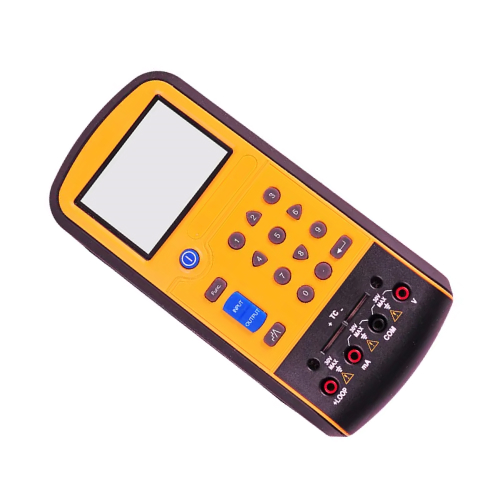

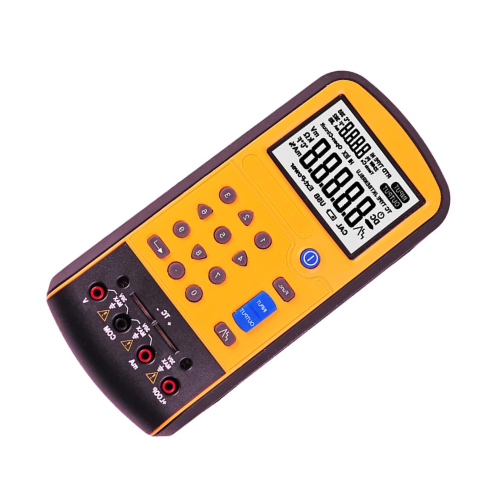

This Process and Thermocouple Calibrator has the temperature ranging from 14 °F to 131 °F (-40 °C to 60 °C), max voltage of 24 V, and a digital LCD.
Features
- Measurement and sourcing capabilities for voltage (V), current (mA), and thermocouples
- Accurate and precise calibration of process parameters
- Clear digital display for easy readings and operation
- Multiple measurement ranges for versatile application
- Adjustable calibration settings and parameters for customization
- Compliance with industry standards for accurate calibration
- Durable construction for reliable performance
- Compatibility with a wide range of devices and instruments for calibration purposes
- Portable design for easy transportation and on-site calibration
Technical Specifications
| Operating temperature | 14 °F to 131 °F (-10 °C to 55 °C) |
| Maximum voltage | 24 V |
| Storage temperature | -40 °F to 140 °F (-40 °C to 60 °C) |
| TC | K, J, E, T, N, S, R, B |
| Power | AAA x 6 |
| Measure DC current loop | 0 mA to 24 mA |
| Measure DC voltage loop | 0 V to 20 V |
| Operating altitude | 78,7 in max |
| Size | 8.03 in x 3.9 in x 1.81 in (204 mm x 99 mm x 46 mm) |
| Weight | 1.01 lb (460 g) (include battery) |
