Overview
Enviro Test Construct high precision ohmmeters are MCU controlled measuring instruments for direct readout of resistance and current. The voltage applied to the device under test (DUT) is programmable from 1 to 1000 volts. A pass or fail indicator provides a visual display of test results based on a preset limit. It has high precision ohmmeters designed for measuring very high resistance and related parameters of insulation materials, electronic components, and electro-mechanical components.
Features
- Read values conveniently and quickly

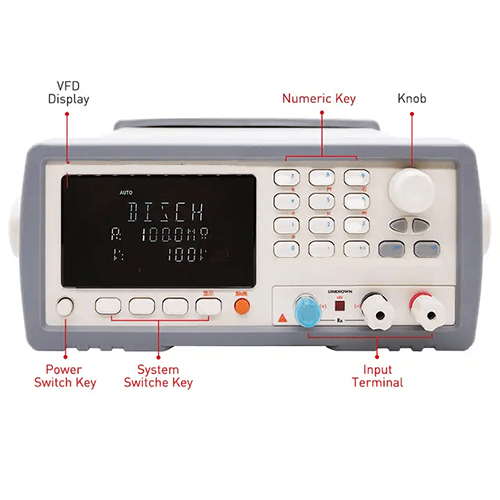

- Cursor key, Numeric keypad

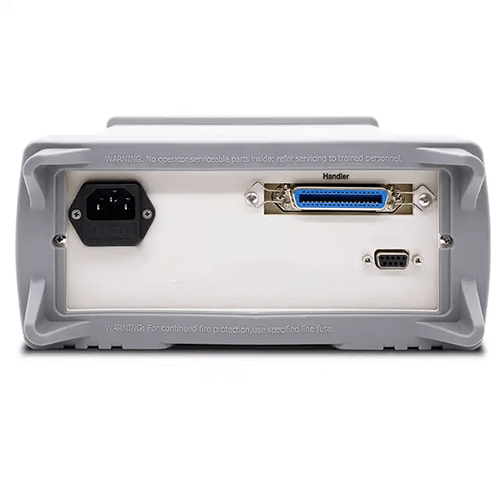

- Extension, communication, power socket fuse holder
Technical Specifications
| Parameter | Leakage current and insulation resistance |
| Output Voltage | (NC)1 V to 1000 V DC |
| Accuracy | 3% |
| Measurement Range | 100 kΩ to 10T Ω or 10 V: 100 kΩ to 100 GΩ 100 V: 1 MΩ to 1 TΩ or 1000 V: 10 MΩ to 10 TΩ |
| Max Reading | 9999 |
| Range | Automatic and Manual |
| Speed | 55 times or second,15 times or second,3 times or second |
| Adjustment | Open-circuit Zero to Adjust for each range |
| Result Display | Show, current, resistance, peak value, and sorting result |
| Charging Timer | 999.9 s |
| Comparator | 30 sets record, GD or NG Beep: GD, NG, OFF setting. |
| Others | VFD four color high-definition screen, keypad lock and data hold function |
| Power Supply | Voltage: 198 V AC to 240 V AC Frequency: 50 Hz Power: Max 30 V A |
| Dimension or Weight | 10.39 in x 4.21 in x 13.78 in (264 mm (Width) x 107 mm (Height) x 350 mm (Depth)) |
| Weight | 11.02 lb (5 kg) |
