Overview

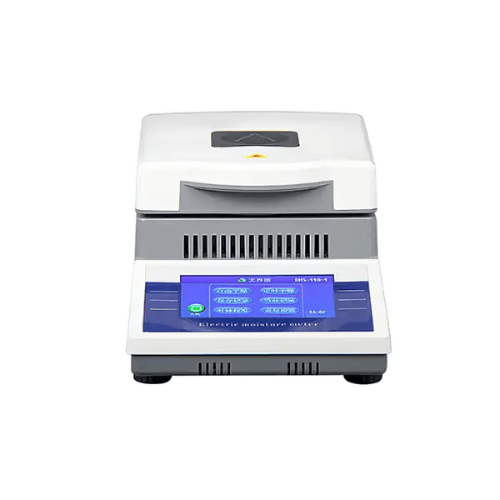

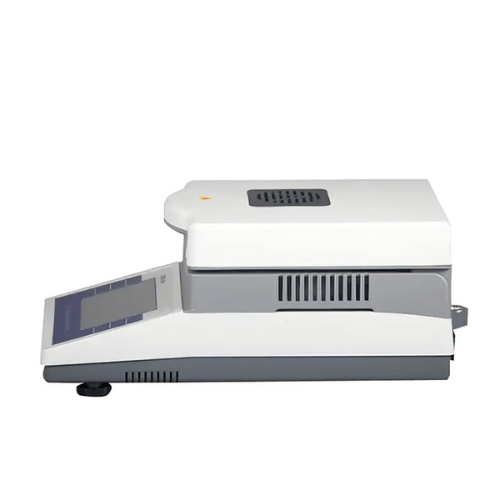

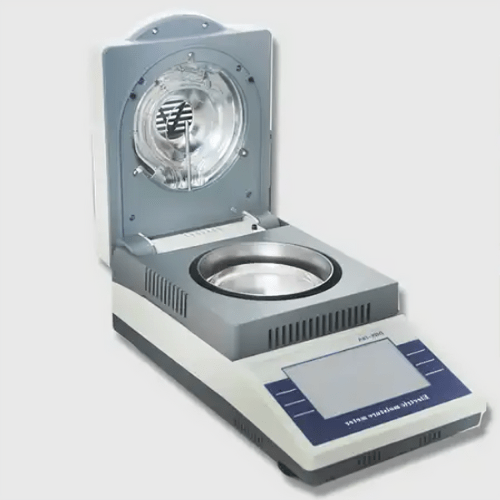

Enviro Test Construct high accuracy grain moisture analyzer adopts HBM weighing system to ensure accurate weighing. Ring quartz tungsten halogen infrared heating source, quick drying of samples in the drying process, the moisture content lost by the sample is continuously measured and displayed immediately. After the drying procedure is completed, the final moisture content value is locked. It can fully meet the requirements of moisture testing in areas like food, medicine, tobacco, paper making, chemical and mineral industry, and so on.
Features
- High precision heat insulation sensor
- Halogen lamp
- % moisture, time, temperature, weight
- Standard with RS 232 Output interface
Technical Specifications
| Moisture measurement Range | 0.01% to 100% |
| Moisture Content Readability | 0.01% |
| Weighing Range | 0 oz (0 g) to 1.76 oz (50 g) |
| Heating Time | 0 min to 99 min |
| Sensor Accuracy | 0.00004 oz (0.001 g) |
| Moisture Measurement Accuracy | ±5% |
| Power | 220 V, 50 Hz |
| Frequency | 50 Hz ±1 Hz |
| Heating Temperature Range | 122 ℉ to 356 ℉ (50 ℃ to 180 ℃) |
| Scale Size | Diameter 3.94 in (100 mm) |
| Shape Size | 13.58 in × 9.65 in × 7.87 in (345 mm × 245 mm × 200 mm) |
