Overview

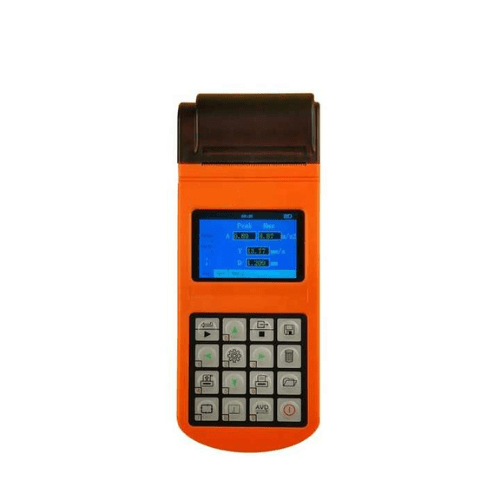

Enviro Test Construct handheld multifunction process calibrator is used to convert vibration signal into electric signal. Through the processing and analysis of the input signal, the peak acceleration, RMS value of velocity (root mean square value), displacement peak – peak or real-time spectrum of vibration measurement are obtained. This product is suitable for conventional vibration measurement, especially vibration measurement in reciprocating machines.
Technical Specifications
| Frequency range | 10 Hz to 200 Hz |
| Allowable vibration measurement error | ±5% |
| Analysis frequency interval | 0.25 Hz |
| Speed measurement range | 30 rpm 30 0000 rpm |
| Permissible error in speed measurement | ± (0.05% + 1) |
| Humidity range | ≤80% RH |
| Display | 320 Pixel × 240 Pixel |
| Communication | Mini USB |
| Battery life | 1500 mAh , 50 hrs |
| Temperature range | 32 °F to 104 °F (0 °C to 40 °C) |
| External dimension | 8.34 in x 3.14 in 1.37 in (212 mm × 80 mm × 35 mm) |
| Machine weight | 0.71 lb (320 g) |
