Overview

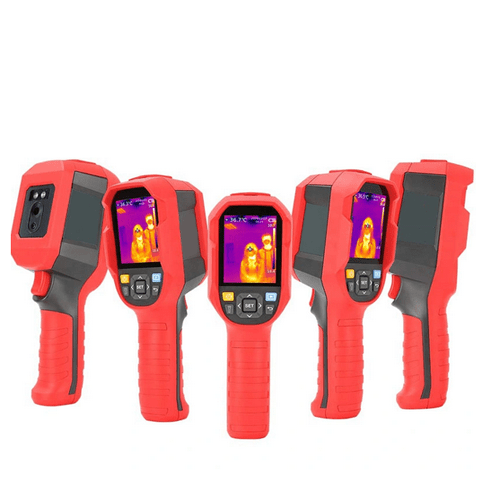

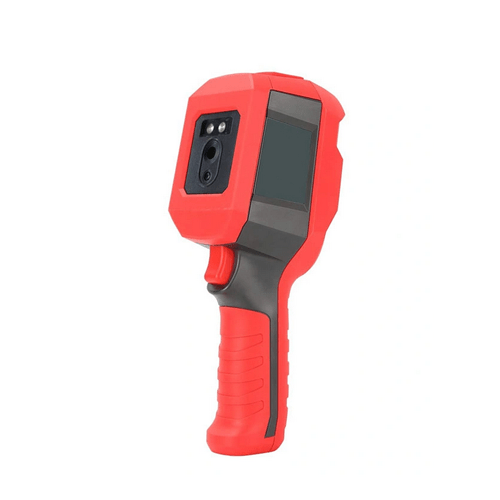

Enviro Test Construct Handheld Digital Thermometer Infrared Temperature Alarm The customized high temperature limit can be set to 99.32 °F (37.3 ºC). For the temperature 99.32 °F (≥37.3 ºC), indicator light and screen will indicate high temperature alarm, which can effectively and quickly screen individuals with abnormal temperature.
Features
- Real-time image transmission
- Mirror the computer on larger screen for monitoring
Technical Specifications
| Sensor | Uncooled focal plane |
| Resolution | 32.18 °F (0.1 ˚C) |
| Accuracy | 32.9 °F to 31.1 °F (±0.5 ˚C) at 100 cm (1 m) |
| Minimum Measuring Distance | 0.15 m (15 cm) |
| Temperature Measurement Response Time | ≤500 ms (95% of reading) |
| Pixel Of Thermal Imagery | 19200 (160 × 120) |
| Pixel Dimensions | 12 μm |
| Palettes | Iron red, rainbow, white, black, red, lava, high-contrast rainbow |
| Bandwidth of Infrared Spectroscopy | 8 μm to 14 μm |
| Instantaneous Field Of View (IFOV) | 6 mrad |
| Thermal Imaging Sensitivity | <50 mk |
| Frame Rate | <9 Hz |
| Temperature Display | Center temperature measurement and high temperature tracking (default) |
| Image Format | BMP |
| Buttons | 10 buttons: POWER button, Camera button, return button, Navigation buttons, SET button, SET button, Browsing button, LED lighting button |
| Pixel Dimemsions | 12 μm |
| Palettes | Iron red, rainbow, white, black, red, lava, high-contrast rainbow |
| Image Modes | Thermal imagery, digital camera (visible light), fushion |
| Temperature Measuring Point | Besides central point, 3 temperature measuring points can be added |
| Resolution Of Visible Light | 640 × 480 |
| Display Resolution | 320 × 240 |
| Mixed Setting | 0% (total visible light), 25%, 50%, 75%, 100% (total thermal imagery) |
| Real-Time Image Transmission | √ (PC software image projection) |
| Data Communication | Type-C USB |
| Auto Power Off | Selectable (5min, 10min, 30min), 30min auto power off (default) |
| Service Time | >=6 hrs |
| Charging Time | <=5 hrs |
| Charging Voltage/Current | 5V or 2A |
| Image Storage | Micro SD card |
| Power | A single Li-ion 3.7 V or 5000 mAh 26650 battery |
| Display | 2.8″ TFT LCD |
| Product Color | Red & grey |
| Standard Accessories | Manual, Type-C USB cable, 16GB TF card |
| Temperature Range | 86 °F to 113 °F (30 ˚C to 45 ˚C) |
| Standard Carton Gross Weight | 4.85 lb (2.2 kg) |
| Product Size | 9.29 in x 2.97 in x 3.38 in (236 mm x 75.5 mm x 86 mm) |
