Overview

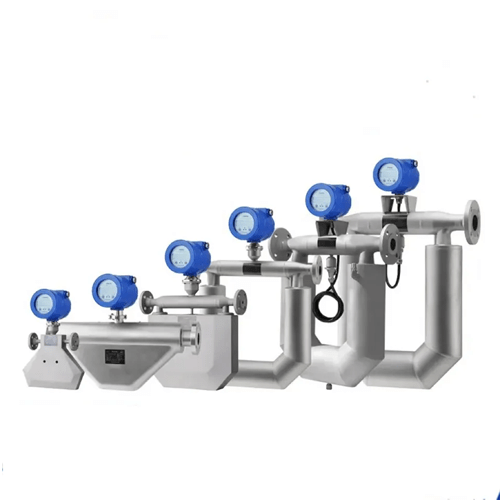

Enviro Test Construct fuel flow meter is a heavy-duty flow meter used to deal with dangerous materials thanks to its complex structure, high-quality stainless-steel tube, used for variety of fields such as petroleum, chemical, metallurgy, food, medicine, and other fields.
Features
- Explosion-proof enclosures
- Stainless steel
- High quality brazing process
Technical Specification
| End connection | Flange connection |
| Flow tube | 316 L SS |
| Sensor housing | 304 SS |
| Splitter & flange | 304 SS |
| Mass flow Accuracy Classification | +0.1%, +0.2% |
| Temperature measuring error | <32.9 °F (<0.5 °C) |
| Working pressure | 0 PSI to 3625.94 PSI |
| Protection classification | IP67 |

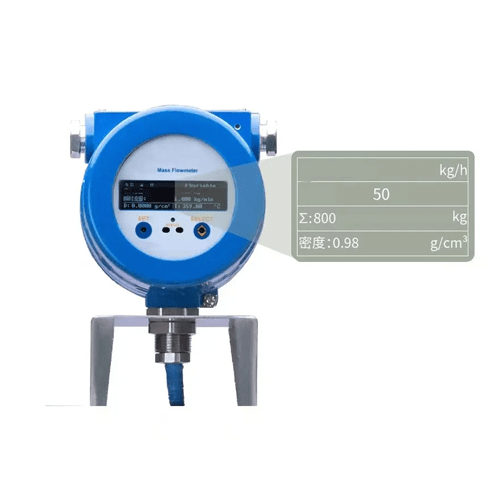

| Liquid crystal display | OLED display, 4 lines show |
| Parameters of the corresponding time | <1 s |
| RH | ≤95%, none condensing |
| Atmospheric Pressure | 12.47 PSI to 15.37 PSI |
| Working power | 220 V AC (15 W) or 24 V DC (7 W) |
| Relative humidity | Less than 99% |
| Protection classification | IP67 |
| Output | 4 mA to 20 mA, Frequency Output, RS485 |
| Communication Method | MODBUS/HART |
| Cable length | 78.74 in |
| Fluid temperature | -58 °F to 392 °F (-50 °C to 200 °C) |
| Ambient Temperature | -40 °F to 60 °C (-40 °C to 60 °C) |
