Overview

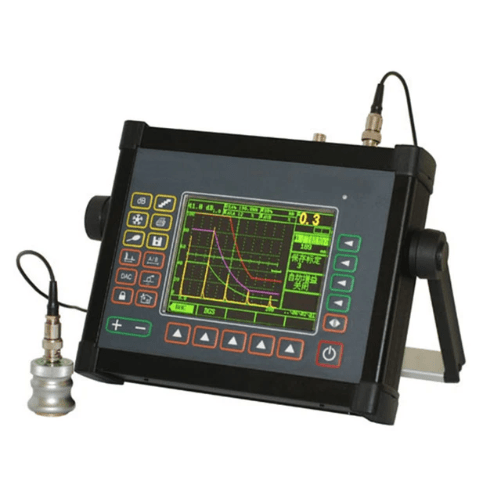

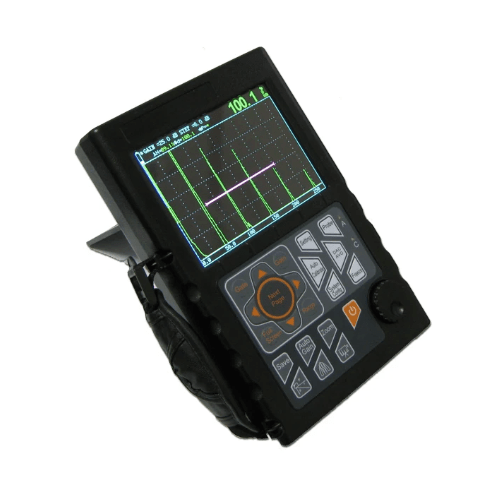

Enviro Test Construct flaw detector, whose performance has a further leap. It adopts high resolution, imported color LCD screen, so the instrument show clarity and stability. It is easy to understand, and it is simple to operate.
Features
- Automated calibration, Automated gain
- DAC, AVG, TCG, B scan, AWS
- High-speed capture and very low noise
- Solid metal housing
- high contrast viewing of the waveform from bright
- Powerful pc software and reports can be export to excel
Technical specification
| Measuring Range | 0 in to 9.87 in ( 0 mm to 6000 mm) |
| Material Velocity | 1000 m/s to 9999 m/s |
| gain | 100 dB |
| Frequency range | 0.5 MHz to 15 MHz |
| Waveform memory | 300 |
| Working hours | 8 hours |
| Pulse amplitude | Low (300 V), medium (500 V), high (700 V) grading options |
| Pulse Width | Continuous adjustment in the range of (0.1 μs to 0.5 μs to match probes of different frequencies |
| Probe damping | 100 Ω, 200 Ω, 400 Ω optional |
